RoodMicrotec using Jenoptik’s UFO Probe Card to test clients’ PIC wafers

04 Nov 2021

Rapidly-emerging photonic chip sector requires new types of testing in manufacture systems.

Wafer level testing is an important part of the supply chain of electronic components. For integrated circuits (ICs), these tests are firmly established – for photonic integrated circuits (PICs), the test ecosystem is still under development. Jenoptik has now developed a component that enables novel PIC wafer level tests with the opto-electronic UFO Probe Card.

Semiconductor consultancy and contractor RoodMicrotec says it is benefiting from the fast and simple integration, high flexibility, and state-of-the-art test technology offered by the UFO Probe Card.

Jenoptik’s launch announcement stated, “In line with an increasing demand for photonic solutions in the semiconductor sector, the requirements for corresponding ecosystems for opto-electronic components are rising and thus, not only semiconductor manufacturers with their own supply chain must change their thinking.”

In addition to the existing test infrastructure for electrical components, also infrastructures for photonic component testing are also required. Test houses offering services such as wafer-level testing for fabless manufacturers face the challenge of expanding or redesigning their test solutions towards photonic integrated circuits (PICs).

In addition to the established tests for ICs, RoodMicrotec now also offers a test service for the new types of PIC testing at wafer level to customers from the semiconductor industry. Jenoptik says it is providing the necessary technology platform with the UFO Probe Card and thus supports RoodMicrotec in setting up the respective test structure.

Testing both electrical and optical components

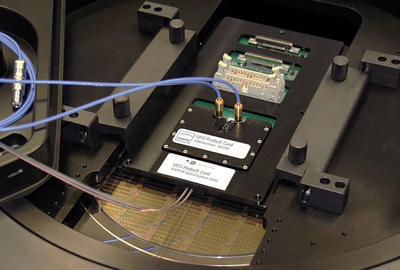

The UFO Probe Card enables the testing of electrical and optical components with only one probe card - in parallel, not sequentially as with previous solutions. Thus, wafer level tests can be performed in a more timesaving manner and the throughput is significantly increased. As a “plug and play” solution, the hybrid probe card can be integrated directly and without much of an adaption effort into RoodMicrotec’s existing standard IC wafer probers. The existing infrastructure can be used immediately, thus simplifying the conversion of test procedures from the classic probe card for electrical components to the hybrid UFO Probe Card within the manufacturing process.

The UFO Probe Card does not require active alignment of the optical interfaces for every single chip. This reduces the test time and cost for each chip and, furthermore, several chips can also be tested simultaneously in parallel. Thus, says Jenoptik, the time needed to separate good from bad components is considerably lower if already done during PIC wafer level testing and the overall yield can be significantly improved, since only functioning chips are transferred to further manufacturing processes. Customers benefit from fewer rejects and thus reduced costs.

Jan de Koning Gans, Managing Director of RoodMicrotec, commented, “As an innovative technology platform, the UFO Probe Card offers the necessary flexibility and scalability. This enables test service providers like us to respond quickly and easily to new challenges in the market.”

Tobias Gnausch, Product Manager for the UFO Probe Card in Jenoptik's Light & Optics division, said, “We are pleased to have RoodMicrotec as an experienced partner for test services, and as a supply chain specialist and service provider for the semiconductor industry it also has access to a wide range of applications. It is important for Jenoptik to recognize the different needs of the end customers in order to promote relevant further developments at an early stage.”

For the future, both companies plan to create standardizations for wafer level PIC testing to become even more efficient and cost-effective. With the jointly created solutions, our customers can take the step towards the future and increasingly rely on photonic solutions.
