25 Aug 2021
Converting ambient light indoors could power smoke alarms, IoT devices, and more, removing need for batteries, power supplies.
A newly published study from the US National Institute of Standards and Technology (NIST) suggests that a straightforward approach for capturing light indoors may be within reach. NIST researchers tested the indoor charging ability of small modular PV devices made of different materials and then hooked up the lowest efficiency module — composed of silicon — to a wireless temperature sensor.
The team’s results, published in Energy Science & Engineering, demonstrate that the silicon module, absorbing only light from an LED, supplied more power than the sensor consumed in operation.
This outcome, says NIST, suggests that the device could run continuously while lights remain on, which would do away with the need for someone to manually exchange or recharge the battery.
“People in the field have assumed it’s possible to power IoT devices with PV modules in the long term, but we haven't really seen the data to support that before now, so this is kind of a first step to say that we can pull it off,” said Andrew Shore, a NIST mechanical engineer and lead author of the study.
Most buildings are lit by a mix of both the sun and artificial light sources during the day. At dusk, the latter could continue to supply energy to devices. However, light from common indoor sources, such as LEDs, spans a narrower spectrum of light than the wider bands emitted by the sun, and some solar cell materials are better at capturing these wavelengths than others.

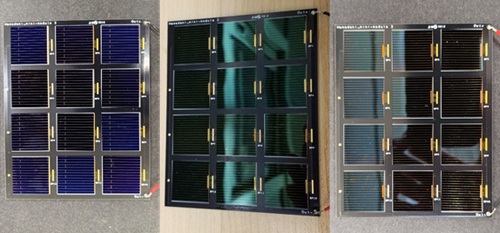

NIST researchers tested mini solar modules made of three different materials under artificial light.
To find out exactly how a few different materials would stack up, Shore and his colleagues tested PV mini modules made of gallium indium phosphide (GaInP), gallium arsenide (GaAs) — two materials geared toward white LED light — and silicon, a less efficient but more affordable and commonplace material.
The researchers placed the centimeters-wide modules underneath a white LED, housed inside an opaque black box to block out external light sources. The LED produced light at a fixed intensity of 1000 lux, comparable to light levels in a well-lit room, for the duration of the experiments.
For the silicon and GaAs PV modules, soaking in indoor light proved less efficient than sunshine, but the GaInP module performed far better under the LED than sunlight. Both the GaInP and GaAs modules significantly outpaced silicon indoors, converting 23.1% and 14.1% of the LED light into electrical power, respectively, compared with silicon’s 9.3% power conversion efficiency.
Coming as no surprise to the researchers, the rankings were the same for a charging test in which they timed how long it took the modules to fill a half-charged 4.18V battery, with silicon coming in last by a margin of more than a day and a half. The team was interested in learning if the silicon module, despite its poor performance relative to its top-shelf competitors, could generate enough power to run a low-demand IoT device, Shore said. Their IoT device of choice for the next experiment was a temperature sensor that they hooked up to the silicon PV module, placed once more under an LED.
Upon turning the sensor on, the researchers found that it was able to feed temperature readings wirelessly to a computer nearby, powered by the silicon module alone. After two hours, they switched off the light in the black box and the sensor continued to run, its battery depleting at half the rate it took to charge.
“Even with a less efficient mini module, we found that we could still supply more power than the wireless sensor consumed,” Shore said. The researchers’ findings suggest that an already ubiquitous material in outdoor PV modules could be repurposed for indoor devices with low-capacity batteries. The results are particularly applicable to commercial buildings where lights are on around the clock.
How well could PV-powered devices operate in spaces that are only lit intermittently throughout the day or shut off at night? And how much of a factor would ambient light pouring in from outside be?
The team plans to tackle both questions, first by setting up light-measuring devices in NIST’s Net-Zero Energy Residential Test Facility to gain an understanding of what light is available throughout the day in an average residence, Shore said. Then they’ll replicate the lighting conditions of the net-zero house in the lab to find out how PV-powered IoT devices perform in a residential scenario.
