LLNL develops new method to improve laser-material interaction

08 Apr 2019

Picosecond pulses for laser ablation paves the way for use of lower-energy, cheaper lasers.

Using ultrashort laser pulses lasting a few picoseconds, Lawrence Livermore National Laboratory researchers have discovered an efficient mechanism for laser ablation, which they say could pave the way toward the use of lower-energy, less costly lasers in many industrial laser processing applications.

The new method, reported in Journal of Applied Physics, uses short-wavelength, high-fluence (energy per unit area) laser pulses to drive shock waves that melt the target material. After the passage of the shock wave, the melt layer is placed under tension during a process known as relaxation, ultimately leading to the ejection of material through cavitation (unstable bubble growth).

The researchers used a combination of experiments and enhanced computer simulations in a previously unexplored range of laser energies and wavelengths to study picosecond laser pulse ablation of aluminum, stainless steel and silicon. Their findings show that ultraviolet picosecond pulses at fluences above 10 joules per square centimeter can remove more material with less energy than longer-wavelength pulses.

“We discovered that this range above 10 joules per square centimeter, particularly for UV laser pulses, behaved very differently than lower fluences and longer wavelengths,” commenetd Jeff Bude, NIF & Photon Science deputy principal associate director for Science & Technology.

“The removal rate jumps when you go beyond 10 joules per square centimeter, and especially for the UV light. At the same time the jump in the removal is accompanied by an increase in the removal efficiency — a reduction in the amount of energy required to remove a given volume of material.”

Bude added, “That was really intriguing to us; it suggested that maybe there’s a different mechanism going on here. So we decided picosecond laser ablation would provide a good test case to probe ablation physics in a regime that was not well understood.”

Picosecond-pulse ablation

The study is thought to be the first comprehensive look at the picosecond-pulse laser ablation process. Selected as an “Editor’s Pick” by the Journal of Applied Physics editors, the research was part of an ongoing Laboratory Directed Research and Development study of pulsed-laser material modification, led by Bude.

The researchers compared the results from laser wavelengths of 355 nm and 1064 nm (near-infrared) over a fluence range of 0.1 to 40 J/cm2 and found that the shorter wavelengths enhanced removal by nearly an order of magnitude over the measured removal at 1064 nm. Laser ablation was many times more efficient at the UV wavelength compared to the near-infrared in all three materials.

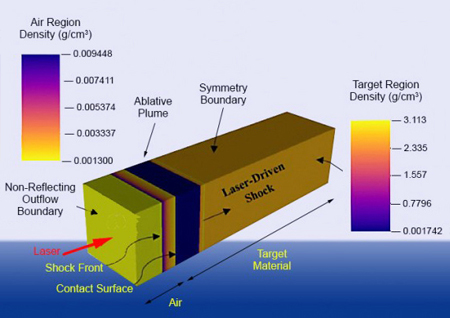

Simulations using the radiation hydrodynamic code HYDRA showed that the increase in ablation efficiency was due to the UV laser pulses penetrating deeper into the ablative plume and depositing energy closer to the target surface, which resulted in higher-pressure shocks, deeper melt penetration and more extensive removal due to cavitation.

“The removal mechanism — shock heating creating a melt and then removing that with cavitation — requires less energy to remove material than vaporization of the material,” said Bude. “That’s the explanation for why it’s more efficient.”

“This discovery was really facilitated by our unique modeling and simulation capability here at the Lab,” said Wes Keller, LLNL analyst and lead author of the paper. “This was a particularly challenging problem to model because the laser energy deposition process was closely coupled with the material hydrodynamic response, requiring a code like HYDRA that has this integrated capability.”

Complicated response

The researchers comment that, “in some ways the research was a case of turning a challenge into an opportunity. Shortly after the study began, we realized that material response to picosecond lasers was a good deal more complicated than if the more common femtosecond lasers had been used.”

Bude added, “When you’re trying to understand picosecond laser processing, some of the simplifying assumptions of the physics that you get with femtosecond pulses are no longer reliable.” Rather than simply absorbing the laser energy and vaporizing, “the material was moving, it was evolving in the laser plume,” he said.

This meant that the models had to be tweaked to account for both the hydrodynamics of the melting material and the interactions between the laser pulse and the plasma in the ablative plume.

Once they realized that temporally shaped, or timed, pulses could exploit the instabilities in the melted material, the researchers were able to use shaped pulses to create a more efficient way to remove material. “We were able to leverage this understanding to do laser processing a different way,” Bude said, “so it actually had a lot of spinoff benefits,” some of which will be detailed in additional papers now in preparation.

The results also suggest that picosecond-pulse lasers offer several advantages over the more commonly used femtosecond lasers in terms of cost, efficiency and damage control. In addition, they offer options for efficient frequency conversion for wavelength flexibility.

“There is some indication,” Bude said, “that in the regime of picosecond to tens of picoseconds you can get the same sort of quality and behavior in your laser cutting, drilling and shaving functions that you could with more expensive lasers operating at less than a picosecond.” The findings thus could lead to new or more efficient laser applications in industry, national defense, medicine and many other fields.
