ORC develops method to make photonic chips

19 Nov 2014

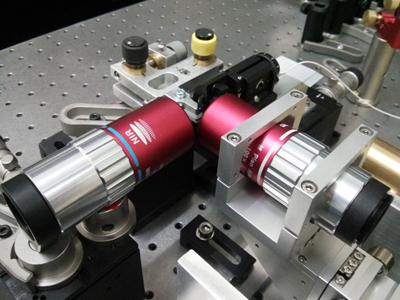

Ultrafast photomodulation spectroscopy uses UV femtosecond pulses to change refractive index of silicon.

Researchers from the University of Southampton, UK, have developed a new technique to help produce more reliable and robust next-generation photonic chips.

The scientists say that photonic chips made from silicon will play a major role in future optical networks for worldwide data traffic. The high refractive index of silicon makes optical structures measuring a few tens of naometers possible. Squeezing ever more optical structures for light distribution, modulation, detection and routing into smaller chip areas allows for higher data rates at lower fabrication costs.

As the complexity of optical chips increases, testing and characterising such chips becomes more difficult. Light traveling in the chip is confined in the silicon, that is, it cannot be ‘seen’ or measured from the outside. The researchers have effectively developed a new method to solve the problem of finding out at which time the light in a chip is at a particular position.

The technique - called ultrafast photo-modulation spectroscopy - uses ultraviolet laser pulses of femtosecond duration to change the refractive index of silicon in a tiny area on the photonic chip.

Non-contact characterization tools like UPMS are vital for scientist designing complex photonic chips. The UPMS technique is fast and robust and has the potential to be used for industrial testing in the photonics industry. The research is published in the latest issue of Nature Photonics.

Dr Roman Bruck, from the Physics and Astronomy department and lead author of the study, said, “Monitoring the transmission of the chip while the refractive index is locally changed gives a precise picture of how the light flows through it. This allows testing of individual optical elements on the chip, a crucial step in the design optimisation to ensure its flawless operation. Because the changes induced by the technique are fully reversible, this testing method is non-destructive and after testing, the chip can be used for its intended application.”

The research team, from Physics and Astronomy and the Optoelectronics Research Centre, is expecting to establish the technique as a standard characterisation tool, making photonic chips under development more reliable and bringing them into the market quicker. The work has been funded by the UK's Engineering and Physical Sciences Research Council (EPSRC).

The research team involved Dr Roman Bruck and Otto Muskens from Physics and Astronomy; Graham Reed, Goran Mashanovich, Ben Mills, Youfang Hu, Frederic Gardes, David Thomson from the Optoelectroncs Research Centre; and Vittorio Passaro and Benedetto Troia, affiliated at the Department of Electrical and Information Engineering, Politecnico di Bari, Italy.
