Imaging defects in organic solar cells

03 Jul 2013

Researchers in Munich develop novel method for visualizing material defects in solar cells.

A research team at LMU, Munich, led by Bert Nickel has, for the first time, succeeded in functionally characterizing the active layer in organic thin-film solar cells using laser light for localized excitation of the material. The group’s findings were first reported in the scientific journal Advanced Materials.

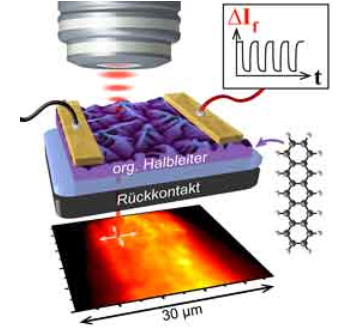

"We have developed a method in which the material is raster-scanned with a laser, while the focused beam is modulated in different ways, such as by means of a rotating attenuator. This enables us to map directly the spatial distribution of defects in organic thin films, a feat which has not previously been achieved," said Christian Westermeier, lead author of the report.

Solar cells convert sunlight into electrical power by exploiting the capacity of light to excite molecules, producing free electrons and positively-charged "holes". How long it takes for these charge carriers to be extracted by the electrodes depends on the fine structure of the solar cell’s active layer. Any defects in the regular arrangement of the atoms act as temporary traps for charge carriers so reduce the size of the current that can be produced.

LMU’s new mapping method allows researchers to detect the changes in current flow associated with localized excitation of defects by laser light. In the utilized experimental geometry a metallic back contact serves as the gating electrode.

By applying a voltage to this gate, the traps present in the semiconducting material can be filled or emptied in a controllable manner via the so-called field effect. By modulating the frequency of the laser light the temporal dynamics of trap states can be determined.

The study revealed that in pentacene (an organic semiconductor) the defects tend to be concentrated at certain positions.

"It would be interesting to know what is special about the surface layer at these hot spots and what produces defects at these sites. They could be due to chemical contaminants or to irregularities in the alignment of the molecules," said Bert Nickel, a member of the Nanosystems Initiative Munich, a Cluster of Excellence.

Nickel and his colleagues selected pentacene for their experiments because it is the most conductive material presently available for the manufacture of organic semiconductors.

In the group’s latest study, they looked at a thin pentacene layer in which the majority of charge carriers are positively-charged holes. In subsequent work, they plan to investigate complete solar cells, which consist of a hole-conducting film in direct contact with an electron-conducting layer.

About the Author

Matthew Peach is a contributing editor to optics.org.
