NREL examines degradation mechanisms of perovskite solar cells

02 Jul 2024

Novel hybrid polymer retains high efficiency and improves UV stability outdoors.

New research funded by the U.S. Department of Energy (DOE) has examined degradation mechanisms of perovskite solar cells (PSCs) under the unfiltered sunlight of the outdoors in comparison with widely used light-emitting diodes.

The research, titled Strong-Bonding Hole-Transport Layers Reduce Ultraviolet Degradation of Perovskite Solar Cells, published in Science, revealed that a special hybrid polymer material synthesized as part of the research and placed within the perovskite cell helps to retain high efficiency and improved ultraviolet stability in outdoor testing.

The team of researchers for the study was led by the University of North Carolina at Chapel Hill with support from the Colorado School of Mines; National Renewable Energy Laboratory; University of California, San Diego; and University of Toledo. A key component of the research was an independent verification of the results by DOE’s Perovskite PV Accelerator for Commercializing Technologies (PACT) center.

Perovskite durability

Most PSC testing occurs in the controlled environment of the lab using light-emitting diodes as light sources. To expedite PSC commercialization, real-world outdoor performance testing is needed to understand underlying mechanisms of sunlight and temperature degradation.

Outdoor conditions are different from indoor light-soaking or maximum power point tracking in several ways. Temperature, irradiance, and UV light intensity constantly change outdoors. Perovskite thin-films can decompose when they react with moisture and oxygen or when they spend extended time exposed to light, heat, or applied voltage.

The team investigated the mechanism of UV light-induced degradation in p-i-n structured PSCs with organic hybrid hole transport materials (HTMs) and developed a method to narrow the gap between indoor and outdoor durability.

In perovskite solar cells, an electric field separates and drives the electron-hole pairs generated from sunlight shining on the device out of the absorbing semiconductor material to generate electricity. The transport layer collects and moves electrons or holes from the perovskite layer to the electrodes, allowing for the flow of electricity.

The researchers determined that the weak chemical bonding between the perovskite layer, polymer HTM layer, and transparent conducting oxide (TCO) layer was found to dominate the degradation. This causes PSC degradation under sunlight with strong UV components.

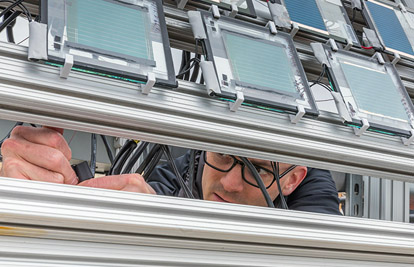

Focusing on the weak chemical bond, researchers demonstrated that a synthesized polymer was found to strengthen the chemical bonding at the perovskite/HTM/TCO region. This hybrid HTM layer was independently verified at the PACT center, and the champion module demonstrated an initial period where the operational efficiency increased a few percent to about 16%. After 29 weeks of outdoor testing, the operational efficiency remained over 16%.

New perovskites

In 2021, the DOE Solar Energy Technologies Office (SETO) established the PACT center to initiate testing and evaluation standards to assess and validate performance and reliability claims for fast-evolving perovskite PV technology.

“We believe this is the first published demonstration of outdoor performance showing perovskite mini modules with an area greater than 15 cm² that had a measured aperture efficiency above 16 percentafter 29 weeks of outdoor testing,” said Laura Schelhas, NREL chemistry researcher, deputy director of PACT, and PACT reliability team lead. “Real-world demonstration is a critical step towards commercialization, and we hope by PACT offering these capabilities researchers and companies can leverage this data toward improved reliability.”
