Harvard SEAS’ diamond mirrors direct 10kW beams without damage

25 May 2022

Single material surfaces withstand the heat from high-powered, continuous lasers – as shown by recent U.S. Navy testing.

Today, most mirrors used to direct the beam in high-power continuous wave lasers are made by layering thin coatings of materials with different optical properties. But if there is even one, tiny defect in any of the layers, the powerful laser beam will burn through, causing the whole device to fail.

Researchers at the Harvard John A. Paulson School of Engineering and Applied Sciences (SEAS) contend that a mirror made from a single material would significantly reduce the likelihood of defects and increase the lifespan of the laser.

They have built a mirror out of one of the strongest materials on the planet: diamond. By etching nanostructures onto the surface of a thin sheet of diamond, the research team has built a highly reflective mirror that withstands, without damage, experiments with a 10-kilowatt U.S. Navy laser.

‘Eliminating thermal stress ’

“Our one-material mirror approach eliminates the thermal stress issues that are detrimental to conventional mirrors, formed by multi-material stacks, when they are irradiated with large optical powers,” said Marko Loncar, the Tiantsai Lin Professor of Electrical Engineering at SEAS and senior author of the paper. “This approach has potential to improve or create new applications of high-power lasers.”

The research is published in Nature Communications.

Loncar’s Laboratory for Nanoscale Optics originally developed the technique to etch nanoscale structures into diamonds for applications in quantum optics and communications.

“We thought, why not use what we developed for quantum applications and use it for something more classical,” said Haig Atikian, a former graduate student and postdoctoral fellow at SEAS and first author of the paper.

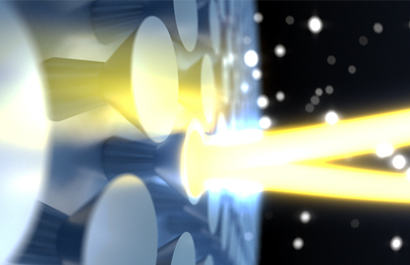

Using this technique, which uses an ion beam to etch the diamond, the researchers sculpted an array of golf-tee shaped columns on the surface on a 3-milimeter by 3-milimeter diamond sheet. The shape of the golf tees, wide on top and skinny on the bottom, makes the surface of the diamond 98.9% reflective.

“You can make reflectors that are 99.999% reflective but those have 10-20 layers, which is fine for low power laser but certainly wouldn’t be able to withstand high powers,” said Neil Sinclair, a research scientist at SEAS and co-author of the paper.

To test the mirror with a high-power laser, the team turned to collaborators at the Pennsylvania State University Applied Research Laboratory, a Department of Defense-designated U.S. Navy University Affiliated Research Center.

There, in a specially designed room that is locked to prevent dangerous levels of laser light from seeping out and blinding or burning those in the adjacent room, the researchers put their mirror in front of a 10-kilowatt laser, strong enough to burn through steel.

Mirror unscathed

“The selling point with this research is that we had a 10-kilowatt laser focused down into a 750-micron spot on a 3-by-3-millimeter diamond, which is a lot of energy focused down on a very small spot, and we didn’t burn it,” said Atikian. “This is important because as laser systems become more and more power hungry, you need to come up with creative ways to make the optical components more robust.”

In the future, the researchers envision these mirrors being used for defense applications, semiconductor manufacturing, industrial manufacturing, and deep space communications. The approach could also be used in less expensive materials, such as fused silica.

Harvard OTD has protected the intellectual property associated with this project and is exploring the commercialization opportunities.

This research was performed in part at Harvard’s Center for Nanoscale Systems (CNS), a member of the National Nanotechnology Coordinated Infrastructure Network (NNCI), which is supported by the National Science Foundation.

It was supported in part by the Air Force Office of Scientific Research (MURI, grant FA9550-14-1-0389), the Defense Advanced Research Projects Agency (DARPA, W31P4Q-15-1-0013), STC Center for Integrated Quantum Materials and NSF Grant No. DMR-1231319.
