Hannover Fair 2022: laser welding reboots steel construction

23 Mar 2022

Fraunhofer IWS-led group develops faster steel jointing with gentler machining power and lower energy need.

Today, energy and resource efficiency are ever more significant, considering rising costs and environmental concerns. So the Fraunhofer Institute for Material and Beam Technology (IWS) and partners have developed an alternative to conventional steel construction that not only offers a process technology solution, but also forms the basis for hardware and laser safety.

This technique facilitates gentler machining of high-strength materials, as well as significantly reducing energy consumption and costs while greatly increasing process speed. The energy required for the component can be cut by up to 80 percent compared with conventional joining processes, say the partners.

Not only that, subsequent straightening of the component is eliminated entirely from the process. The innovative welding process will be presented at the Hannover Messe, Germany. between May 30 and June 2 at the joint Fraunhofer booth in Hall 5, Stand A06.

Many technical structures feature some form of steel construction. Be it a container ship, railway vehicle, bridge or wind turbine tower, any one of these structures can have several hundred meters of welding seams.

Conventional industrial processes such as metal active gas welding or submerged arc welding are usually used for this purpose. The problem is that due to the low intensity of the arc, a large proportion of the energy expended is not actually used in the welding process, but is lost to the component in the form of heat.

“These energy-intensive processes cause significant thermal damage to the material and result in severe distortion of the structure, which then demands costly straightening work afterwards,” said Dr. Dirk Dittrich, who heads up the Laser Beam Welding Group at IWS.

Powerful laser welding

A team of researchers led by Dr. Dittrich has developed an energy-efficient alternative together with industrial partners as part of the “VE-MES – Energy-efficient and low-distortion laser multi-pass narrow-gap welding” project.

Laser multi-pass narrow-gap welding (laser MPNG, see box below) uses a commercially available high-power laser and stands out from conventional methods thanks to its reduced number of layers and drastically reduced seam volume. These elements of the welding process are its key benefits.

“Depending on the component, we can reduce the energy input for the component during welding by up to 80 percent, and we can lower filler material consumption by up to 85 percent compared to conventional arc processes,” said Dr. Dittrich.

“What’s more, it was not necessary to carry out a straightening process on the component studied. As a result, we can cut production time and costs, process high-strength steel materials and significantly improve the CO2 balance of the entire production chain. Given the significant number of steel structures being built in Germany and around the world, this could prove to be hugely advantageous.”

This is because the high intensity of the laser beam guarantees that the energy input is highly localized at the welding point, whereas the surrounding areas of the component remain comparatively cold. “The welding time is also reduced by 50 to 70 percent,” said Dittrich, citing another advantage.

The new process also excels in terms of weld seam quality – the seams are significantly slimmer and the edges are virtually parallel, whereas in conventional welding processes the seams are V-shaped.

“If laser welding were used in steel construction processes, it would become a unique selling point for medium-sized businesses in Germany and strengthen its market position in the face of international competition,” says Dittrich with confidence. “We are providing the industry with an efficient form of joining technology that is set to revolutionize steel construction on account of its cost-effective application and resource-saving production process.”

Steel girders for crane construction

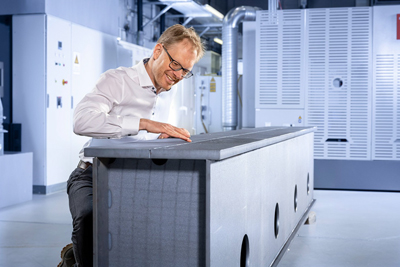

The researchers from Fraunhofer IWS demonstrated the performance of their new development using a practical example from indoor crane construction. They deployed the new welding technology using special system technology and an integrated beam protection concept.

The design of the experimentally built, four-meter-long rectangular profile of an indoor crane segment conformed to the design and manufacturing guidelines of comparable, conventionally produced components. Weld seams typical of the application were produced: a butt joint on 30-millimeter plates and a fully joined T-joint (15mm plate).
