Thermal imaging helps vehicle makers comply with U.S. standards

17 Dec 2024

Flir and VSI Labs show how “Fed MVSS 127” assessment for emergency braking benefits from IR sensing, but some new cars fail.

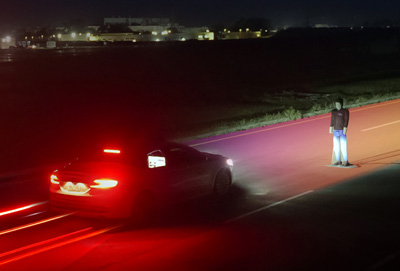

A fused-thermal imaging PAEB system outperformed existing AEB systems.

VSI Labs’ research vehicle, which included the latest automatic emergency braking (AEB) thermal camera from Flir, passed all tests, while three new 2024 vehicles failed two or more night time test scenarios.

FMVSS No. 127 mandates the inclusion of PAEB systems in all passenger cars and light trucks with a gross vehicle weight of 10,000 pounds or less (4536 kg) by September 2029. The new regulation requires that PAEB systems must detect pedestrians in various lighting conditions and at increased vehicle speeds. This is especially critical as pedestrian fatalities in traffic crashes remain near all-time highs, particularly at night, when 77.7 percent of pedestrian fatalities occurred in 2022.

The U.S. National Highway Traffic Safety Administration (NHTSA) demonstrated via testing last year that meeting FMVSS No. 127 requirements is achievable. The smallest and lightest vehicle of the five commercial-off-the-shelf (COTS) vehicles the agency tested, the 2023 Toyota Corolla Hybrid XLE, passed all PAEB tests at the maximum required speed.

The other four COTS vehicles that NHTSA tested failed one or more of the low headlight beam night time tests, suggesting that increased speed and vehicle weight combined with decreased visibility challenge existing AEB sensor suites.

VSI Labs tested the performance of a thermal-fused PAEB system on a Ford Fusion Hybrid research vehicle and three current state-of-the-art 2024 COTS PAEB systems. The thermal-fused AEB sensor suite featured Flir’s latest long wave infrared automotive thermal camera, an automotive HD radar, and an automotive visible camera. All three 2024 COTS vehicles use a combination of radar and/or visible cameras and do not feature a thermal camera.

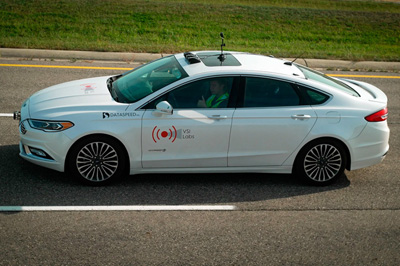

Under test: Ford Fusion Hybrid research vehicle.

• Daytime PAEB Performance: Both thermal fused and COTS PAEB systems passed all daytime tests.
• Nighttime PAEB Performance: Only the thermal-fused PAEB system passed all nighttime tests, demonstrating superior detection capabilities independent of headlight performance.
• Thermal Active Pedestrian Test Mannequins (PTM): Commercially available heated, thermally active PTMs provide a realistic representation of a human thermal signature and are recommended for future PAEB testing protocols using thermal cameras.

Mike Walters, VP, product management, Teledyne Flir OEM, commented, “With the ability to see through darkness, shadows, headlight and sun glare, smoke, and most fog, as well as its unique capability to detect wildlife on the roadway, OEMs should consider integrating thermal cameras as a cost-effective method to meet FMVSS No. 127 requirements to increase real-world vehicle and pedestrian safety.”

“VSI Labs’ testing showed that all three COTS vehicles failed at least two or more test scenarios at night, indicating that meeting the standard will be challenging using the current top-rated PAEB systems on all vehicle sizes and weights,” said Phil Magney, Founder of VSI Labs.

“Furthermore, real-world corner cases are potentially more challenging, emphasizing the value of automotive thermal cameras for true-positive and false-positive PAEB performance. VSI’s testing shows that thermal camera technology exists to help automotive manufacturers meet FMVSS No. 127 requirements by 2029 and make roads safer for pedestrians,” he said.

The full testing details and results report may be viewed at flir.com/oem/adas/fmvss-no-127-PAEB-test-report.
