European group developing a 1kW dot matrix ultrafast laser

10 Feb 2020

"MultigrAVE" project aiming to carve flow-optimised surfaces in metal surfaces, imitating shark skin.

Laser-engraved metal, produced to reduce environmental impact anti-fouling, hydrophobic metal or plastic surfaces, engraved by a new kilowatt laser technology being developed by European scientists, could soon replace the toxic varnishes used in ship coatings to stop algae or barnacles sticking to hulls – reducing maintenance costs, fuel bills and even CO₂ emissions.

Harnessing what they refer to as "a new type of photonics technology", a group of European scientists are developing a 1kW, dot matrix ultrafast laser system that can carve flow-optimised metal or plastic surfaces capable of imitating the incredibly efficient skin from sharks.

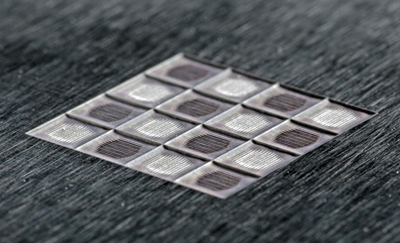

Etching tiny "spike" structures onto sheet metal or plastic, the new laser system can create a rough surface at a microscopic level. This uneven topography can create a reduction in drag or inhibit the growth of bacteria, algae or even barnacles. Sharkskin, covered in millions of microscopic denticles – tiny protruding scales – reduces drag to make it a highly efficient swimmer.

Funded by the Photonics PPP, the scientists behind the €4.7 million laser project hope that specially-designed structures on steel ship hulls might help to reduce fuel consumption and replace toxic ship paints and varnishes that are harmful to the environment.

Multiflex project

Dr Johannes Finger, coordinator of the MultiFlex project, commented, “Laser-fabricated surface structures have the potential to reduce friction and to prevent the growth of plants and algae. This could significantly reduce ship repair, maintenance, CO₂ emissions and fuel bills while providing an alternative to harmful coatings that are toxic to the environment.

“Besides maritime components, application fields can be found in aircraft and turbomachinery. Here, surface structures might inhibit cavitation and thus improve lifetimes of propellers of propulsion systems or water turbines. Our photonics system can also create design textures or microcavities. Here the environment benefits by replacing environmental problematic technologies like chemical etching,” said Dr Finger.

Ultrashort Pulsed (USP) or ultrafast lasers can ablate any material without damaging it. Surfaces cut with a USP are smooth, on a micron-scale and ideal for many industries where hard materials need to be processed with the highest precision. With the so-called Dot Matrix Laser Developed by the MultiFlex project, the material is structured by the world's first such laser.

In the same way that an old-fashioned dot matrix printer uses a moving head, printing in a line by line motion, the laser sends super-fast pulses of concentrated energy to ablate materials that are conventionally difficult to work with. Resembling a giant chessboard, the system splits a single beam into a grid of 64 beamlets, in which each single ray can be turned on, off, positioned, and individually tuned.

“Existing ultrafast lasers are known for their precise ablation and cutting results. Unfortunately, processing large parts with such lasers can take weeks. Our system will ablate more than 150 mm³ in one minute, therefore making it hundreds of times faster than existing technologies,” said Dr Finger.

Wider applications

While the laser represents an exciting breakthrough in surface technology, the ultrafast laser has several further applications:

• Tool and mould manufacturing – With increased throughput, MultiFlex is making many USP mould and tool making applications, such as fabricating venting holes or microcavities, and making textures on free-form surfaces more cost-efficient. Tool and mould application is the first field where the technology will be validated.
• Automotive – By delivering high throughput for USP surface processing technology, MultiFlex is tackling the micro-structuring applications for interior lighting, instrument clusters and aesthetic and haptic structures.
• Electronics – Increasing the spread of ultrafast processing in electronics will improve the performance and reliability of sophisticated high-performance electronic components. Ultrafast laser-based fabrication of via holes and technical ceramics for high-performance electronics will be significantly improve.
• Printing and Embossing – With a more economical and rapid production line, the MultiFlex system has the potential to significantly increase electronics printing, precise embossing of microstructures and the fabrication efficiency for high precision tools.

The consortium consists of the research institute Fraunhofer ILT and the Chair for Technology of Optical Systems of RWTH Aachen University from Germany as well as Amplitude Systèmes, LASEA France, AA OptoElectronic from France and LASEA from Belgium as industrial research and development partners. The three-year MultiFlex project is supported by the European Commission within the framework of the ICT-04-2018 program and has received a grant of € 4.7 million via the Photonics Public Private Partnership.
