Atom-thick solar cells promise new dawn for PV

04 Jul 2013

Ultrathin sheets could produce hundreds of times more power per weight than existing solar cells, says MIT.

Most efforts at improving solar cells have focused on increasing the efficiency of their energy conversion, or on lowering the cost of manufacturing. But now MIT researchers say they are opening another avenue for improvement, by aiming to produce the thinnest and most lightweight solar panels possible.

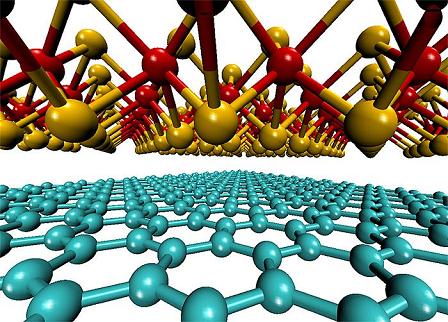

Such panels, which are claimed to have the potential to surpass any material other than reactor-grade uranium in terms of energy produced by weight, could be made from stacked sheets of one-molecule-thick materials such as graphene or molybdenum disulfide.

Jeffrey Grossman, the Carl Richard Soderberg Associate Professor of Power Engineering at MIT, says the MIT approach “pushes towards the ultimate power conversion possible from a material” for solar power. Grossman is the senior author of a Nano Letters paper describing this approach.

Although scientists have devoted considerable attention in recent years to the potential of two-dimensional materials such as graphene, Grossman says, there has been little study of their potential for solar applications. It turns out, he says, “they’re not only OK, but it’s amazing how well they do.”

One atom thickness

Using two layers of such atom-thick materials, Grossman says, his team has predicted solar cells with 1 to 2 percent efficiency in converting sunlight to electricity, That’s low compared to the 15 to 20 percent efficiency of standard silicon solar cells, he says, but it’s achieved using material that is thousands of times thinner and lighter than tissue paper. The two-layer solar cell is only 1 nm thick, while typical silicon solar cells can be hundreds of thousands of times that. The stacking of several of these two-dimensional layers could boost the efficiency significantly.

”Stacking a few layers could allow for higher efficiency, one that competes with other well-established solar cell technologies,” says Marco Bernardi, a postdoc in MIT’s Department of Materials Science who was the lead author of the paper. Maurizia Palummo, a senior researcher at the University of Rome visiting MIT through the MISTI Italy program, was a co-author.

For applications where weight is a crucial factor — such as in spacecraft, aviation or for use in remote areas of the developing world where transportation costs are significant — such lightweight cells could have great potential, Bernardi says.

Weight for weight, he says, the new solar cells produce up to 1,000 times more power than conventional photovoltaics materials. At about one nanometer in thickness, “It’s 20 to 50 times thinner than the thinnest conventional solar cells made today,” Grossman adds. “You could not make a solar cell any thinner.”

This slenderness is not only advantageous in shipping, but also in ease of mounting solar panels. About half the cost of today’s panels is in support structures, installation, wiring and control systems, expenses that could be reduced through the use of lighter structures. In addition, the material itself is much less expensive than the highly purified silicon used for standard solar cells — and because the sheets are so thin, they require only minuscule amounts of the raw materials.

An additional advantage of such materials is their long-term stability, even in open air; other solar-cell materials must be protected under heavy and expensive layers of glass. “It’s essentially stable in air, under ultraviolet light, and in moisture,” Grossman says. “It’s very robust.”

The work so far has been based on computer modeling of the materials. Grossman’s group is now trying to produce such devices. “I think this is the tip of the iceberg in terms of utilizing 2-D materials for clean energy” he says. This work was supported by funding from the MIT Energy Initiative.

About the Author

Matthew Peach is a contributing editor to optics.org.
