MIT laser comb rapidly identifies chemicals with high precision

27 Aug 2025

Ultrabroadband IR frequency comb could be used for detection in portable spectrometers.

Researchers at MIT have demonstrated a compact, fully integrated frequency combs source that uses a carefully crafted mirror to generate a stable frequency comb with very broad bandwidth. The mirror they developed, along with an on-chip measurement platform, offers the scalability and flexibility needed for mass-producible remote sensors and portable spectrometers.

“The broader the bandwidth a spectrometer has, the more powerful it is, but dispersion is in the way. Here we took the hardest problem that limits bandwidth and made it the centerpiece of our study, addressing every step to ensure robust frequency comb operation,” said Qing Hu, Distinguished Professor in Electrical Engineering and Computer Science at MIT, principal investigator in the Research Laboratory of Electronics, and senior author on an open-access paper describing the work.

The research is published in Light: Science and Applications (Nature).

Broadband combs

An optical frequency comb produces a spectrum of equally spaced laser lines, which resemble the teeth of a comb. Scientists can generate frequency combs using several types of lasers for different wavelengths. By using a laser that produces long wave infrared radiation, such as a quantum cascade laser, they can use frequency combs for high-resolution sensing and spectroscopy.

In dual-comb spectroscopy, the beam of one frequency comb travels straight through the system and strikes a detector at the other end. The beam of the second frequency comb passes through a chemical sample before striking the same detector. Using the results from both combs, scientists can replicate the chemical features of the sample at much lower frequencies, where signals can be easily analyzed.

The frequency combs must have high bandwidth, or they will only be able to detect a small frequency range of chemical compounds, which could lead to false alarms or inaccurate results. Dispersion is the most important factor that limits a frequency comb’s bandwidth. “With long wave infrared radiation, the dispersion will be very high. There is no way to get around it, so we have to find a way to compensate for it or counteract it by engineering our system,” said Hu.

Double-chirped mirror

Many existing approaches are not flexible enough to be used in different scenarios or do not enable high enough bandwidth. Hu’s group previously solved this problem in a different type of frequency comb, one that used terahertz waves, by developing a double-chirped mirror (DCM).

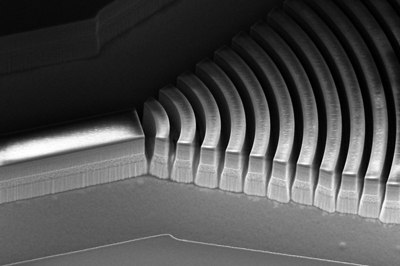

A DCM has multiple layers with thicknesses that change gradually from one end to the other. They found that this DCM, which has a corrugated structure, could effectively compensate for dispersion when used with a terahertz laser. “We tried to borrow this trick and apply it to an infrared comb, but we ran into lots of challenges,” Hu said.

Because infrared waves are 10 times shorter than terahertz waves, fabricating the new mirror required an extreme level of precision. At the same time, they needed to coat the entire DCM in a thick layer of gold to remove the heat under laser operation. Plus, their dispersion measurement system, designed for terahertz waves, would not work with infrared waves.

“After more than two years of trying to implement this scheme, we reached a dead end,” Hu said. Ready to abandon the project, the team realized something they had missed. They had designed the mirror with corrugation to compensate for the lossy terahertz laser, but infrared radiation sources are not as lossy. This meant they could use a standard DCM design to compensate for dispersion, which is compatible with infrared radiation. However, they still needed to create curved mirror layers to capture the beam of the laser, which made fabrication much more difficult than usual.

“The adjacent layers of mirror differ only by tens of nanometers. That level of precision precludes standard photolithography techniques. On top of that, we still had to etch very deeply into the notoriously stubborn material stacks. Achieving those critical dimensions and etch depths was key to unlocking broadband comb performance,” said Zeng.

In addition to precisely fabricating the DCM, they integrated the mirror directly onto the laser, making the device extremely compact. The team also developed a high-resolution, on-chip dispersion measurement platform that does not require bulky external equipment. “As long as we can use our platform to measure the dispersion, we can design and fabricate a DCM that compensates for it,” Hu added.

In the future, the researchers want to extend their approach to other laser platforms that could generate combs with even greater bandwidth and higher power for more demanding applications.
