Programmable solution for fast wireless communication networks and microwave sensing.

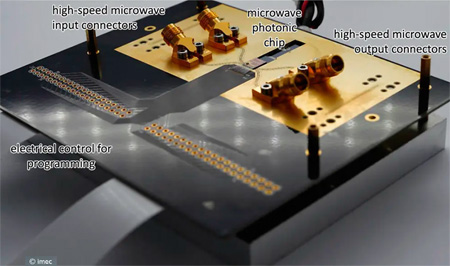

The Photonics Research Group and IDlab, two imec research groups at Ghent University, and imec, a world-leading research and innovation hub in nanoelectronics and digital technologies, have published the demonstration of a fully-integrated single-chip microwave photonics system, combining optical and microwave signal processing on a single silicon chip.The chip integrates high-speed modulators, optical filters, photodetectors, as well as transfer-printed lasers, making it a compact, self-contained and programmable solution for high-frequency signal processing. This breakthrough can replace bulky and power-hungry components, enabling faster wireless networks, low-cost microwave sensing, and scalable deployment in applications like 5G/6G, satellite communications, and radar systems.
The results have been published in Nature Communications.
Modern communication networks rely on both high-speed fiber-optic links and wireless radio-frequency microwave transmission, but as demand for higher data rates and operation at higher frequencies grows, new systems need much tighter integration between these two modes of communication to overcome the struggle with signal processing complexity, high transmission losses, and power-hungry electronics.
Microwave photonics offers a promising solution by using optical technology to process high-frequency signals with lower loss, higher bandwidth, and improved energy efficiency. However, most microwave photonics systems rely on bulky, fiber-based architectures that limit scalability. In contrast integrating microwave photonics onto a chip could enable more scalable and power-efficient systems, but early experimental demonstrations have either lacked key functionalities or required external components to achieve full performance.
Converting both optical and microwave signals

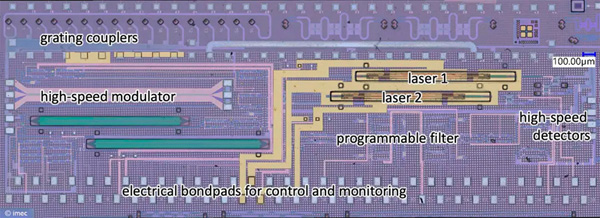

Microscope image of the fabricated microwave photonic chip.
This combination enhances overall performance allowing the system to handle complex signal processing tasks with greater flexibility and efficiency for a wide range of applications.
The chip is built on imec’s standard “iSiPP50G” silicon photonics platform, which includes low-loss waveguides and passive components, high-speed modulators and detectors, and thermo-optic phase shifters for tuning the optical response. To provide an integrated light source, the researchers incorporated an indium phosphide (InP) optical amplifier (developed by III-V Lab) on the chip using the microtransfer-printing technology developed at the Photonics Research Group. In combination with on-chip tunable filter circuits, this allows the optical amplifier to function as a widely tunable laser, further enhancing the system’s versatility.
“The ability to integrate all essential microwave photonics components on a single chip marks a major step toward scalable and energy-efficient high-frequency signal processing,” said Wim Bogaerts, professor in the Photonics Research Group at Ghent University and imec. “By eliminating bulky external components, this technology paves the way for more compact, cost-effective solutions in next-generation wireless networks and advanced sensing systems.”
