LZH researches method to make formable hybrid components

13 Jul 2023

Two-laser processes for tailored forming project aiming to produce load-adapted solid parts.

Using expensive materials on high-performance components only where needed is the vision of the German Collaborative Research Center’s SFB 1153 “Tailored Forming” project. Scientists at Laser Zentrum Hannover (LZH) are researching two laser-based processes.

Hybrid semi-finished products can save material and costs in production if only those parts of a component are made from a high-cost material that is subject to high demands in later use and therefore has to be particularly wear-resistant, for example.

The “Tailored Forming” project is developing a novel process chain for the production of load-adapted hybrid solid components in which the semi-finished products are first joined and then formed. To this end, the LZH is conducting research on two laser-based processes.

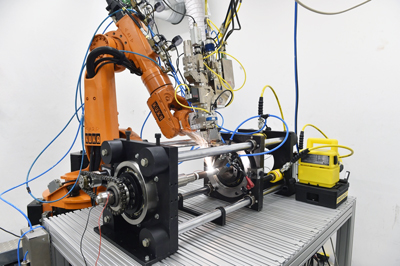

The Joining and Cutting of Metals group produced crack-free formable semi-finished products using an ultrasonic-assisted laser beam welding process. The scientists welded shafts made of various mixed compounds such as steel-steel or steel-nickel and developed corresponding processes.

Their focus was on how cracks can be avoided and which parameters in the welding process influence quality characteristics such as weld penetration depth or weld reinforcement.

In the third funding period of the Collaborative Research Center, the group wants to ensure greater process stability by modulating the laser power, among other things, and to develop process control to achieve repeatable, reliable quality in producing semi-finished products. In addition, mechanical stresses in the component are to be reduced by ultrasonic post-treatment.

Laser deposition welding

The Machines and Controls group is conducting research into novel components with local, load-adapted property profiles. To achieve this, the scientists have used laser hot-wire deposition welding to apply a cost-intensive, high-strength material as a coating specifically to areas of the component that are subjected to high loads during operation.

Target applications are tooth flanks of gearwheels. In this way, high-quality and hard coatings could be applied, and the properties of the coating were specifically influenced by the material selection.

In the next step, the group would like to develop process monitoring for quality assurance in deposition welding. For this purpose, the secondary radiation generated in the welding process is to be measured with special sensor technology and analyzed with machine learning methods to be able to derive a prediction of the coating properties. The goal: non-destructive quality control of the coatings in the process.

Collaborative Research Center

The work of the LZH is part of the Collaborative Research Center SFB 1153 "Process chain for the production of hybrid high-performance components through tailored forming", in which experts from nine institutes of the Faculty of Mechanical Engineering at Leibniz University Hannover, from the LZH and the Institute for Integrated Production Hannover are working on developing new process chains for the production of hybrid components.

Within the SFB, LZH is working on subproject “Ultrasound-assisted laser welding for the generation of formable mixed compounds”, together with the Institute of Dynamics and Vibration, and subproject “Spatial adaption of material properties of forming parts using surfacing techniques to produce graded hybrid components”, together with the Institute of Materials Science.
