Wide-angle monitoring meets high-resolution capture in new camera platform

20 May 2021

Researchers at Shibaura Institute of Technology develop hybrid camera enabling detailed 360° monitoring for target identification.

Extracting detailed images from conventional surveillance cameras has long been a challenge due to the trade-off between such cameras’ field-of-view and their limited resolution.

Surveillance cameras are typically required to have a wide field-of-view to make the detection of a threat more likely. Due to this, omnidirectional cameras allowing a 360-degree capture range are a popular choice, for the reason that they have no blind spot, but also because they are also inexpensive.

However, recent studies on object recognition in omnidirectional cameras show that distant objects (such as intruders, vehicles or even ordnance) captured by these cameras have rather poor resolution, making their identification difficult.

While increasing the resolution is one solution, the minimum resolution required, according to one study, is “4K” (3840 x 2160 pixels), which translates to enormous bitrate requirements and the need for efficient image compression.

Moreover, 3D omnidirectional images often cannot be processed in raw form due to lens distortion effects and must be projected onto 2D first. “Continuous processing under high computational loads incurred by tasks such as moving object detection combined with converting a 360-degree video at 4K or higher resolutions into 2D images is simply infeasible in terms of real-life performance and installation costs,” commented Dr. Chinthaka Premachandra from Shibaura Institute of Technology (SIT), Japan, who researches image processing.

Addressing this issue in his latest paper in IEEE Sensors Journal, Dr. Premachandra, along with his colleague Masaya Tamaki from SIT, considered a system in which an omnidirectional camera could locate a region of interest while a separate camera would capture its high-resolution image. This approach allows highly accurate object identification without incurring large computation costs.

Hybrid camera

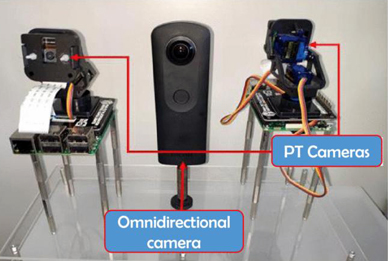

Accordingly, the SIT team constructed a hybrid camera platform consisting of an omnidirectional camera and a pan-tilt (PT) camera with 180-degree field-of-view kept on either side of it. Incidentally, the omnidirectional camera itself comprised two fisheye lenses sandwiching the camera body, with each lens covering a 180-degree capture range.

The researchers used Raspberry Pi Camera Modules v2.1 as PT cameras on which they mounted a pan-tilt module and connected the system to a Raspberry Pi 3 Model B. Finally, they connected the whole system, the omnidirectional camera, the PT cameras and the Raspberry Pi, to a personal computer for overall control.

The operational flow was as follows: the researchers first processed an omnidirectional image to extract a target region, following which its coordinate information was converted into angle information (pan and tilt angles) and subsequently transferred to the Raspberry Pi. The Raspberry Pi, in turn, controlled each PT camera based on this information and determined whether a complementary image was to be taken.

The researchers mainly performed four types of experiments to demonstrate the performance in four different aspects of the camera platform and separate experiments to verify the image capturing performance for different target object locations.

While they contemplate that a potential issue could arise from capturing moving objects for which the complementary images could be shifted due to time delay in image acquisition, they have proposed alongside a potential countermeasure: introducing a Kalman filtering technique to predict the future coordinates of the object when capturing images.

Dr. Premachandra concluded, “We expect that our camera system will create positive impacts on future applications employing omnidirectional imaging such as robotics, security systems, and monitoring systems.”
