Terahertz spectroscopy maps meter-scale graphene samples contactlessly

24 Feb 2021

Europe’s Graphene Flagship develops new method to analyze graphene that could boost production and optimize devices.

Terahertz imaging of graphene paves the way to industrialization

As X-ray scans revolutionized non-invasive medical treatments, terahertz spectroscopy penetrates graphene films allowing scientists to make detailed maps of their electrical quality, without damaging or contaminating the material.

Now Europe’s Graphene Flagship has brought together researchers from academia and industry to develop and mature this analytical technique, and created a novel measurement tool for graphene characterisation.

The effort was possible thanks to the collaborative environment enabled by the Graphene Flagship European consortium, with participation by scientists from Graphene Flagship partners DTU, Denmark, IIT, Italy, Aalto University, Finland, AIXTRON, UK, imec, Belgium, Graphenea, Spain, Warsaw University, Poland, and Thales R&T, France, as well as collaborators in China, Korea and the US.

The latest achievements are described in the journal 2D Materials.

Easier quality assessment

Graphene is often “sandwiched” between many different layers and materials to be used in electronic and photonic devices. This complicates the process of quality assessment. Terahertz spectroscopy makes things easier. It images the encapsulated materials and reveals the quality of the graphene underneath, exposing imperfections at critical points in the fabrication process.

Quality control precedes trust. Thanks to other developments pioneered by the Graphene Flagship, such as roll-to-roll production of graphene and layered materials, fabrication technology is ready to take the next step. Terahertz spectroscopy enables the ramping up of graphene production without compromising the quality.

“This is the technique we needed to match the high-throughput production levels enabled by the Graphene Flagship,” said Peter Bøggild from Graphene Flagship partner DTU. “We are confident that terahertz spectroscopy in graphene manufacturing will become as routine as X-ray scans in hospitals,” he added.

“In fact, thanks to terahertz spectroscopy you can easily map even meter-scale graphene samples without touching them, which is not possible with some other state-of-the-art techniques.” Furthermore, the Graphene Flagship is currently studying how to apply terahertz spectroscopy directly into roll-to-roll graphene production lines, and speed up the imaging.

Collaboration was key to this achievement. Graphene Flagship researchers in academic institutions worked closely with leading graphene manufacturers such as Graphene Flagship partners Aixtron, Graphenea and imec.

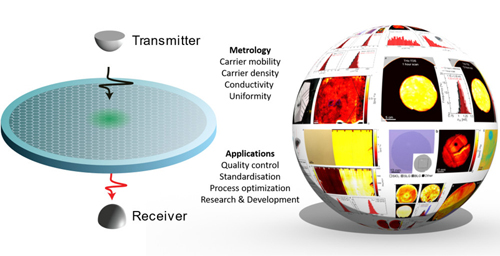

“This is the best way to ensure that our solution is relevant to our end-users, companies that make graphene and layered materials on industrial scales,” says Bøggild. “Our publication is a comprehensive case study that highlights the versatility and reliability of terahertz spectroscopy for quality control and should guide our colleagues in applying the technique to many industrially relevant substrates such silicon, sapphire, silicon carbide and polymers,” he added.

Setting standards

Setting standards is an important step for the development of any new material, to ensure it is safe, genuine and will offer a performance that is both reliable and consistent. That is why the Graphene Flagship has a dedicated work-group focused on the standardisation of graphene, measurement and analytical techniques and manufacturing processes.

The new method for terahertz spectroscopy is on track to become a standard technical specification, thanks to the work of the Graphene Flagship Standardisation Committee.

“This will undoubtedly accelerate the uptake of this new technology, as it will outline how analysis and comparison of graphene samples can be done in a reproducible way,” saids Peter Jepsen from Graphene Flagship Partner DTU, who co-authored the study. “Terahertz spectroscopy is yet another step to increase the trust in graphene-enabled products,” he said.

Amaia Zurutuza, co-author of the paper and Scientific Director at Graphene Flagship partner Graphenea, said, “At Graphenea, we are convinced that terahertz imaging can enable the development of quality control techniques capable of matching manufacturing throughput requirements and providing relevant graphene quality information, which is essential in our path towards the successful industrialisation of graphene.”

Thurid Gspann, the Chair of the Graphene Flagship Standardisation Committee, said, “This terahertz [spectroscopy] technique is expected to be widely adopted by industry. It does not require any particular sample preparation and is a mapping technique that allows one to analyse large areas in a time efficient way.”

Marco Romagnoli, Graphene Flagship Division Leader for Electronics and Photonics Integration, added, “The terahertz spectroscopy tool for wafer-scale application is a state-of-the-art, high TRL system to characterise multilayer stacks on wafers that contain CVD graphene. It works in a short time and with good accuracy, and provides the main parameters of interest, such as carrier mobility, conductivity, scattering time and carrier density. This high-value technical achievement is also an example of the advantage of being part of a large collaborative project like the Graphene Flagship.”
