Key Supplier
MOXTEK, INC. (MICROSITE REMOVED FOR 2023- Looking to come back 2024)

UV-VIS-IR Polarizers

Polarizers
UV Polarizers
Our ProFlux® ultraviolet polarizers are used in a wide range of UV applications where performance, contrast, and durability is important. Our UVT and UVD Series polarizers have excellent broadband performance with options for both high transmission and high contrast.

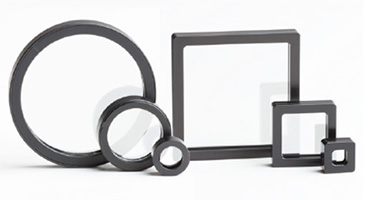

Our wire grid polarizers are available in various sizes and shapes in both bare glass or mounted forms.

FeaturesBenefits
Nanowire® TechnologyBrightness and contrast uniformity
±20˚ AOI without depolarization (UV Type)
Broadband performance (UV Type)
InorganicHigh heat resistance
Protective Coating (optional) PProtect Polarizer in UV, Ozone

Request a Quote UV ProFlux Datasheet

Visible Polarizers
Our ProFlux® visible polarizers have broadband performance, large angle of incidence (AOI), and high temperature heat tolerance making them the preferred choice for projection displays, analytical systems, automotive, medical, and other applications.

We offer both reflective and absorptive polarizers.

ProFlux® ABS series absorptive polarizers are optimized to absorb unwanted RGB light bands, reducing stray light and thermal loading caused by back reflections common in LCD projection displays.

Our wire grid polarizers are available in various sizes and shapes in both bare glass or mounted forms.

FeaturesBenefits
Nanowire® TechnologyBrightness and contrast uniformity
±20˚ AOI without depolarization
Wavelength and AOI independent
InorganicHigh heat resistance, long life
Absorptive (Option)Extremely low reflection
Reduced thermal load to LCD panel

Request a Quote Reflective Visible Datasheet Absorptive Visible Datasheet

IR Polarizers
BIR Series – NIR to SWIR
ProFlux® BIR series polarizers are designed for the near-wave and mid-wave infrared regions from 700nm to 2.5µm and provide unparalleled performance. These polarizers are optimized for either high contrast or high transmission.

Our wire grid polarizers are available in various sizes and shapes in both bare glass or mounted forms.

SIR Series – MWIR to LWIR
SIR series polarizers are designed for mid-wave and long-wave infrared regions from 3-5µm or from 8-12µm using AR coated silicon substrates. These broadband polarizers provide excellent contrast and transmission.

If an extreme amount of contrast is needed, two infrared high contrast polarizers can be stacked together.

FeaturesBenefits
Nanowire® TechnologyBrightness and contrast uniformity
±20˚ AOI without depolarization
Wavelength and AOI independent
InorganicHigh heat resistance, long life

Request a Quote BIR Series Datasheet SIR Series Datasheet
