Ultrablack thin-film coating could improve ‘next-gen’ telescopes

14 Mar 2024

China group-developed coating absorbs 99% of light while braving harsh conditions.

Sometimes, seeing clearly requires complete black. For astronomy and precision optics, coating devices in black paint can cut down on stray light, enhancing images and boosting performance. For the most advanced telescopes and optical systems, every little bit matters, so their manufacturers seek out the blackest blacks to coat them.

In the Journal of Vacuum Science & Technology A, researchers from the University of Shanghai for Science and Technology and the Chinese Academy of Sciences described the development of an ultrablack thin-film coating for aerospace-grade magnesium alloys. Their coating absorbs 99.3% of light while being durable enough to survive in harsh conditions.

For telescopes operating in the vacuum of space, or optical equipment in extreme environments, existing coatings are often insufficient. “Existing black coatings like vertically aligned carbon nanotubes or black silicon are limited by fragility,” said author Yunzhen Cao.

“It is also difficult for many other coating methods to apply coatings inside a tube or on other complicated structures. This is important for their application in optical devices as they often have significant curvature or intricate shapes.”

Atomic layer deposition

To solve these problems, the researchers turned to atomic layer deposition (ALD). With this vacuum-based manufacturing technique, the target is placed in a vacuum chamber and sequentially exposed to specific types of gas, which adhere to the object's surface in thin layers.

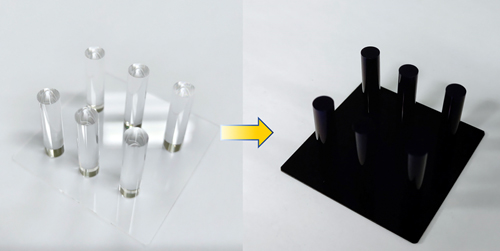

“One big advantage of the ALD method lies in its excellent step-coverage ability, which means we can obtain uniform film coverage on very complex surfaces, such as cylinders, pillars, and trenches,” said Cao.

To make their ultrablack coating, the team used alternating layers of aluminum-doped titanium carbide (TiAlC) and silicon nitride (SiN3). The two materials work together to prevent nearly all light from reflecting off the coated surface. “TiAlC acted as an absorbing layer, and SiN3 was employed to create an anti-reflection structure,” said Cao. “As a result, nearly all of the incident light is trapped in the multilayer film, achieving efficient light absorption.”

In tests, the team found an average absorption of 99.3% across a wide range of light wavelengths, from violet light at 400 nanometers all the way to near infrared at 1,000 nanometers. Using a special barrier layer, they even applied their coating to magnesium alloys, which are often used in aerospace applications but are easily corroded. The authors anticipate that the coating will be used to enhance space telescopes and optical hardware operating in the most extreme conditions and are working to further improve its performance.
