UCLA’s partially coherent imaging system enhances visual data transmission

30 Oct 2024

Needed for applications requiring asymmetric data processing and optical communications.

Traditional imaging systems are bidirectional—if A can see B, B can also see A. Researchers at UCLA have developed a new type of imaging technology, which, they say, could revolutionize the capture and processing of visual information: “unidirectional imaging”.

By allowing images to be formed in only one direction, this technology provides an efficient and compact method for asymmetric visual information processing and communication. Unidirectional imaging is designed to form images from one field of view (FOV) to another, while blocking image formation in the reverse direction. This means that images are only formed from FOV A to FOV B, and not the other way around.

As reported in Advanced Photonics Nexus, the Ozcan Research Group at UCLA, led by Professor Aydogan Ozcan, has demonstrated that these imagers work exceptionally well under partially coherent light, which is light that has some degree of phase correlation.

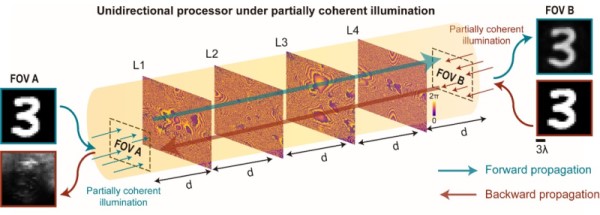

They achieved high-quality imaging in the forward direction (A → B) with high power efficiency, while the reverse direction (B → A) showed distorted images and much lower power efficiency. This selective imaging capability is made possible by a set of spatially engineered asymmetric linear diffractive layers that are optimized for partially coherent illumination.

Their research revealed that when the imagers are illuminated by a partially coherent beam with a phase correlation length of at least 1.5 times the wavelength of light (λ), they perform robustly, showing a clear difference in imaging quality between the forward and backward directions. Even with a smaller correlation length, the imagers still support unidirectional image transmission, though with slightly reduced performance.

Versatile imagers

These imagers are compact, measuring less than 75 times the wavelength of light in thickness, and are independent of light polarization.

They are also compatible with various types of light sources, including broadband radiation, making them versatile for different applications. This makes them particularly useful for asymmetric visual information processing and communication, where controlling the direction of image formation is crucial.

The Ozcan Research Group commented, “The development of unidirectional imagers marks a significant step forward in imaging technology, offering new possibilities for scientific research and practical applications in fields such as optical communication and visual information processing.”
