Australian team creates first ‘self-calibrated’ photonic-chip

08 Jul 2022

Monash and RMIT-led group develops PICs as bridges for data superhighways, replacing bulky 3D optics.

Researchers at Monash and RMIT universities in Melbourne, Australia, have led a project to develop an advanced photonic integrated circuit (PIC) that builds bridges between data superhighways, which the team says will “revolutionize the connectivity of current optical chips and replacing bulky 3D-optics with a wafer thin slice of silicon.”

This development, described in Nature Photonics, has the ability to warp-speed the global advancement of artificial intelligence and offers significant real world applications such as:

  • Safer driverless cars capable of instantly interpreting their surroundings.
  • Enabling AI to more rapidly diagnose medical conditions.
  • Making natural language processing even faster for apps such as Google Homes, Alexa and Siri.
  • Smaller switches for reconfiguring optical networks that carry our internet to get data where it’s needed faster.

Dr Mike Xu from Monash University's Department of Electrical and Computer Systems Engineering and now at Beijing University of Posts and Telecommunications, Professor Arthur Lowery from Monash University's Department of Electrical and Computer Systems Engineering, and Dr Andy Boes who conducted this research while at RMIT and has recently taken up a position at the University of Adelaide, conceived the experiment under a joint Australian Research Council Discovery Project.

Professor Arnan Mitchell and Dr Guanghui Ren engineered the chip for the experimental demonstration. The project’s lead investigator, Monash University ARC Laureate Fellow Professor Arthur Lowery said this breakthrough “complements the previous discovery of Monash University’s Dr Bill Corcoran who, in partnership with RMIT in 2020, developed a new optical microcomb chip that can squeeze three times the traffic of the entire NBN through a single optical fiber, considered to be the world's fastest internet speed from a single fingernail-sized chip.”

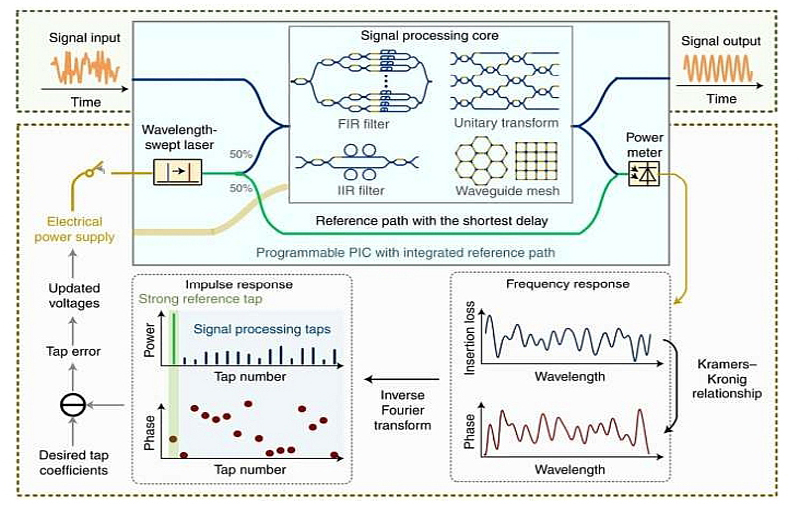

The optical microcomb chip built multiple lanes of the superhighway, now the self-calibrating chip has created the on and off ramps and bridges that connect them all and allow greater movement of data. “We have demonstrated a self-calibrating programmable photonic filter chip, featuring a signal processing core and an integrated reference path for self-calibration,” said Professor Lowery.

’Self calibration’

He added, “Self-calibration is significant because it makes tunable photonic integrated circuits useful in the real world; applications include optical communications systems that switch signals to destinations based on their colour, very fast computations of similarity [correlators], scientific instrumentation for chemical or biological analysis, and even astronomy.

“Electronics saw similar improvements in the stability of radio filters using digital techniques, that led to many mobiles being able to share the same chunk of spectrum: our optical chips have similar architectures, but can operate on signals with Terahertz bandwidths.”

New internet-reliant technologies like self-driving cars, remote controlled mining and medical equipment, will require even faster and increased bandwidth in the future. Bandwidth increase is not just about improving the optical fibres in which our internet travels through, it's about providing compact switches of many colours, going many directions, so data can be sent down many channels at once.

“This research is a major breakthrough – our photonic technology is now sufficiently advanced so that truly complex systems can be integrated on a single chip. The idea that a device can have an on-chip reference system that allows all its components to work as one, is a technological breakthrough that will allow us to address bottleneck internet issues by rapidly reconfiguring the optical networks that carry our internet to get data where it’s needed the most,” said Professor Arnan Mitchell from InPAC, also in Melbourne.

Photonic circuits are able to manipulate and route optical channels of information, but they can also provide some computational ability, for example, searching for patterns. Pattern searching is fundamental to many applications: medical diagnosis, autonomous vehicles, internet security, threat identification and search algorithms.

Challenging integration

A key challenge of the research was integrating all the optical functions onto a device that could be plugged in to existing infrastructure. “Our solution is to calibrate the chips after manufacturing, to tune them up in effect by using an on-chip reference, rather than by using external equipment”, said Professor Lowery, an ARC Laureate Fellow.

“We use the beauty of causality, effect following cause, which dictates that the optical delays of the paths through the chip can be uniquely deduced from the intensity versus wavelength, which is far easier to measure than precise time delays. We have added a strong reference path to our chip and calibrated it. This gives us all the settings required to ‘dial up’ and desired switching function or spectral response.”

The method is a critical step to make photonic chips practically useful. Rather than searching for a setting, akin to tuning in an old radio, the researchers could tune the chip in one step enabling the quick and reliable switch of data streams from one destination to another.

Reliable tuning of photonic chips opens up many other applications, such as optical correlators, which can almost instantaneously find patterns of data in data streams, such as images - something the group has also been working on.

“As we integrate more and more pieces of bench-sized equipment onto fingernail-sized chips, it becomes more and more difficult to get them all working together to achieve the speed and function they did when they were bigger. We overcame this challenge by creating a chip that was clever enough to calibrate itself so all the components could act at the speed they needed to in unison,” says Dr Andy Boes from the University of Adelaide.
