Scientists develop 'cheap and flexible' micro-Raman spectrometer

08 Jun 2016

At a cost of €10,000, and with greater capability than conventional systems, the economy Raman scope will empower biomedical researchers.

Raman spectroscopy provides detailed chemical information of target materials, and when combined with a microscope, it can non-destructively analyze biological samples. While commercial research-grade Raman microscopes have been available for some time, they have tended to be both inflexible and very expensive.

In a paper in the current issue of Biomedical Spectroscopy and Imaging, researchers from Germany and Serbia describe an inexpensive, versatile micro-Raman system that can be assembled from readily available components at a fraction of the cost of a commercial tool.

Because micro-Raman spectroscopy combines chemical characterization with imaging in a label-free way, it is suited to biological research because it can detect variations in biomolecular composition and correlate that information with corresponding biological changes due to metabolism or pathology.

It also holds promise for rapid clinical diagnosis in living cells and applications such as observation of cell metabolism, growth, aging, and studies of drug resistance or drug uptake. Since disease typically originates at the cellular level, this capability could help researchers to understand how changes within an individual cell could lead to disease development.

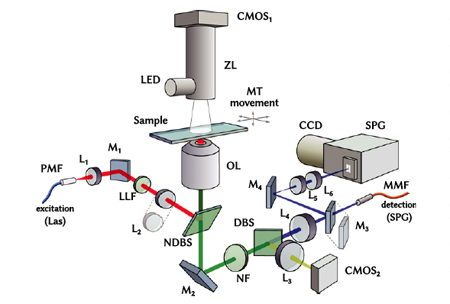

To build this microscope, the authors obtained more than 20 components, ranging from mirrors and filters to cameras, lenses, and a motorized table. They estimate that their design could be built for about €10,000 and requires only “normal expertise” in optical assembly. Details of the components are given in a table in the journal article.

The microscope can be switched from an upright to an inverted configuration, which is an unusual but important advantage for analyzing biological samples. It is particularly effective for hyperspectral imaging, through which the chemical composition of each pixel in a scanned image can be determined. In addition to Raman spectroscopy, the system can be combined with other modalities such as fluorescence imaging.

Research application

The microscope was used to collect Raman maps of individual cells from two different cancer cell lines, MIA PaCs-2 pancreatic cancer and Jurkat, T-Lymphocytes. By collecting the spectra at each point, the relative concentrations of lipids vs. proteins/DNA were mapped.

According to lead investigator Prof. Jürgen Popp, PhD, of the Leibniz Institute of Photonic Technology and the Institute of Physical Chemistry and Abbe Center of Photonics, Jena, both Germany, the development of this instrument embodies their institute’s mission, “From ideas to instruments.”

Researcher Christoph Krafft, PhD, commented, “We acquired Raman images of single human cells with a custom instrument. These data demonstrated that the instrument provides spectra of sufficient quality to distinguish the cell type. This result will be exploited in projects about identification of tumor cells circulating in blood.”

Along with coauthors Roman Kiselev and Iwan W. Schie, from the Leibniz Institute, and Sonja Aškrabić, of the Institute of Physics, University of Belgrade, Belgrade, Serbia, Prof. Popp and Dr. Krafft hope that any interested user will be able to construct a similar flexible and inexpensive tool to conduct critical and potentially ground-breaking research.

“The advances made by the authors will make Raman micro-spectroscopic imaging of biological systems accessible to a greater number of scientists, especially those who do not have sufficient funding to purchase the more expensive instruments,” said Biomedical Spectroscopy and Imaging Editor-in-Chief Dr. Parvez Haris, Faculty of Health & Life Sciences, De Montfort University, UK. “Thanks to this development we are likely to see a growth in Raman micro-spectroscopic imaging of biological samples including cancer tissues.”
