UK develops 'Hyperion' laser-based aircraft tracking system

10 Mar 2016

EPSRC-funded UK partnership development, which could aid disaster relief efforts, starts field tests.

A ground-breaking tracking system called Hyperion, which is based on eye-safe lasers could enable aircraft, unmanned aerial vehicles (UAVs) and even orbiting satellites to transmit vital data to ground stations more securely, quickly and efficiently.

The £325,000, 2.5 year research program to develop Hyperion was completed in mid-2015, with field testing of the component systems now ongoing. The developers say they are confident that with further development, the Hyperion system could be introduced into commercial use as early as 2019.

The development of Hyperion has been pioneered by a joint team through the UK Government’s Innovate HITEA program, including the University of Oxford with funding from the Engineering and Physical Sciences Research Council and Airbus Group Innovations with Innovate UK support. A proof-of-concept system has now been successfully tested in-flight. The range of the system is currently 1km but work to extend this range is underway.

The developers say that the Hyperion system offers major benefits compared with traditional radio frequency data transmission systems currently relied on in the UAV sector. Hyperion could, for example, allow UAVs engaged in disaster monitoring, surveying, search and rescue and other humanitarian missions to send detailed images more rapidly back to the ground for analysis.

The project managers say the main motivations behind this project are: the growing market –increasing numbers of aircraft, UAVs and satellites are being deployed the sky for a variety of applications from agriculture and land surveying through to disaster relief, security and military; the bandwidth offered by laser frequencies – the conventional RF spectrum is over-allocated meaning it cannot support the desired high data rates cannot easily; and safety – 1550nm light does not focus on the human retina so this wavelength can be used in an eye-safe manner.

It could also enable airliners of the future to offload huge amounts of technical and performance data gathered by sophisticated on-board sensors to ground crews during final approach to an airport, speeding up maintenance procedures and cutting turn-round times.

Professor Philip Nelson, Chief Executive of EPSRC said: “This EPSRC-funded research is leading to exciting developments in aerospace and communications. It will potentially make aircraft and unmanned vehicles better connected and more resilient to outside interference.”

How it works

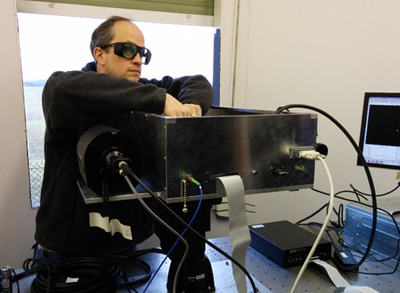

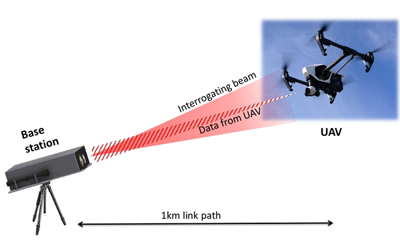

This optical system aims a laser with a wavelength of 1550nm up from the ground towards the target aircraft, which is equipped with a specially designed reflector that captures the beam, modifies it with the data to be transmitted and then sends it back to the ground where it can be decoded and read.

With its optimized aircraft tracking capability and secure high-speed data link, Hyperion offers key advantages over RF communications which are potentially vulnerable to interception and jamming and rely on an increasingly crowded part of the electromagnetic spectrum. Unless alternatives are developed that can supplement radio communications, it simply will not be possible to cope with the huge volumes of data that need to be transmitted from the skies in years in come.

Professor Dominic O'Brien, who has led the Oxford team, said: “Hyperion has the potential to enable extremely lightweight, low-power data terminals for UAVs, allowing flight-time to be extended, or smaller aircraft with enhanced capabilities.”

Yoann Thueux, Research Team Leader at Airbus Group Innovations, added: “Hyperion has clear potential to develop into a technology solution addressing the requirements of UAV operators, who need real-time access to increasing amounts of mission data for surveillance, agriculture and disaster relief. It could also address the needs of the space sector, by allowing data download from microsatellites in low Earth orbit.”

John Laughlin, Aerospace Program Lead at Innovate UK says “High bandwidth rapid transfer of aircraft data allows more efficient operation, new services and safer travel. Collaborations such as these between industry and academia to develop new disruptive solutions to existing challenges are essential to the success of the UK aerospace sector.”
