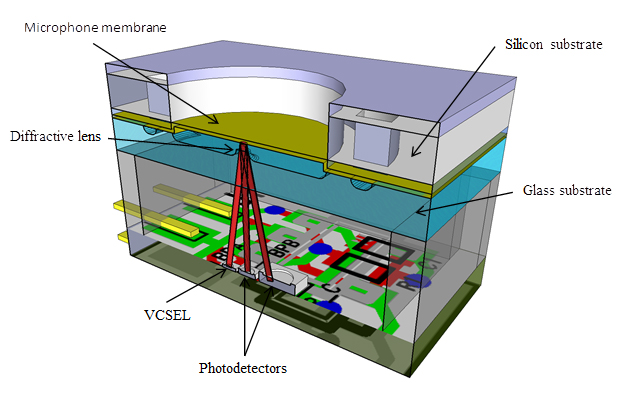

| Cross-section of the SINTEF microphone including the readout electronics. A VCSEL illuminates a grating situated just under the membrane and one or several photodetectors measure light intensities in one or several diffraction orders of the grating, which is actually a diffractive lens with focusing capabilities. |
