NIST closes ‘green laser gap’ by modifying ring micro-resonator to fit on chip

02 Sep 2024

Device could improve underwater comms, color laser projection, and treat certain medical conditions.

Green laser pointers have existed for 25 years, but they produce light only in a narrow spectrum of green and are not integrated in chips where they could work together with other devices to perform useful tasks.

Now scientists at the U.S. National Institute of Standards and Technology (NIST) say they have “closed the green gap” by modifying a tiny optical component: a ring-shaped microresonator, small enough to fit on a chip.

A miniature source of green laser light could improve underwater communication because water is nearly transparent to blue-green wavelengths in most aquatic environments. Other potential applications are in full-color laser projection displays and laser treatment of medical conditions, including diabetic retinopathy, a proliferation of blood vessels in the eye.

Compact lasers in this wavelength range are also important for applications in quantum computing and communication, as they could potentially store data in qubits, the fundamental unit of quantum information. Currently, says NIST, these quantum applications depend on lasers that are larger in size, weight and power, limiting their ability to be deployed outside the laboratory.

The researchers have just reported their findings in Nature Light: Science and Applications.

For several years, a team led by Kartik Srinivasan of NIST and the Joint Quantum Institute (JQI), a research partnership between NIST and the University of Maryland, has used microresonators composed of silicon nitride to convert infrared laser light into other colors.

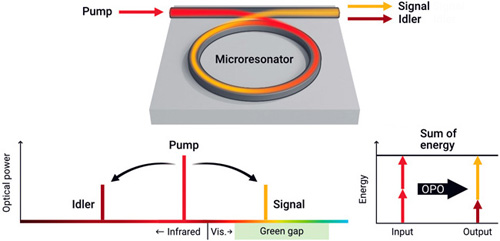

When infrared light is pumped into the ring-shaped resonator, the light circles thousands of times until it reaches intensities high enough to interact strongly with the silicon nitride. That interaction, known as an optical parametric oscillation (OPO), produces two new wavelengths of light, called the idler and the signal.

Previous achievements

In previous studies, the researchers generated a few individual wavelengths of visible laser light. Depending on the dimensions of the microresonator, which determine the wavelength generated, scientists produced red, orange and yellow wavelengths, as well as a wavelength of 560 nm.

However, the team could not generate the full complement of yellow and green colors necessary to fill the green gap. “We didn’t want to be good at hitting just a couple of wavelengths,” said NIST scientist Yi Sun, a collaborator on the new study. “We wanted to access the entire range of wavelengths in the gap.”

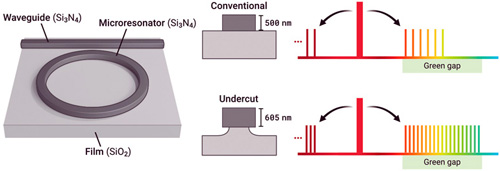

To fill the gap, the team modified the microresonator in two ways. First, the scientists slightly thickened it. By changing its dimensions, the researchers more easily generated light that penetrated deeper into the green gap, to wavelengths as short as 532 nm.

With this extended range, the researchers covered the entire gap. In addition, the team exposed the microresonator to more air by etching away some of the silicon dioxide layer below it. This had the effect of making the output wavelengths less sensitive to the microring dimensions and the infrared pump wavelength. The lower sensitivity gave the researchers more control in generating slightly different green, yellow, orange and red wavelengths.

Improving fine-tuning

As a result, the researchers found they could create more than 150 distinct wavelengths across the green gap and fine-tune them. “Previously, we could make big changes — red to orange to yellow to green — in the laser colors we could generate with OPO, but it was hard to make small adjustments within each of those color bands,” Srinivasan noted.

The scientists are now working to boost the energy efficiency with which they produce the green-gap laser colors. Currently, the output power is only a few percent of that of the input laser. Better coupling between the input laser and the waveguide that channels the light into the microresonator, along with better methods of extracting the generated light, could significantly improve the efficiency.
