Fraunhofer IAF achieves first operation of dual-media NV diamond laser

08 Oct 2024

“Laser threshold magnetometry” offers many medical diagnostics and treatment processes.

Measuring tiny magnetic fields, such as those generated by brain waves, could support many new novel opportunities for medical diagnostics and treatment. A research team led by Dr. Jan Jeske at the Fraunhofer IAF (Fraunhofer Institute for Applied Solid State Physics) is working on a new approach to precise magnetic field measurements called Laser Threshold Magnetometry.

The researchers have combined an NV diamond (nitrogen-vacancy center or NV center) and a laser diode in a resonator, successfully demonstrating the sensor system with two active media for the first time. This achievement is described in Science Advances and they say it “represents a significant progress in the BMBF-funded research project NeuroQ”.

Quantum sensors based on NV centers in diamond are already widely used for precise magnetic field measurements at room temperature and in background magnetic fields. Laser Threshold Magnetometry (LTM) is a novel research approach to measure extremely low magnetic fields in the femtotesla to picotesla range.

In addition, LTM allows measurements with a high dynamic range without the need to suppress background fields. These features make laser threshold magnetometry particularly useful for medical applications, such as measuring biomagnetic signals from the brain or heart.

LTM principle

The scientific principle of LTM has already been extensively studied in theory. Since then, researchers at the IAF have been working on the realization of the first laser threshold magnetometer. The idea is to develop a laser from NV centers and to use the laser light, which reacts to magnetic fields, to obtain precise information about the strength and direction of a magnetic field.

The laser threshold is the point at which the laser starts or stops emitting light. As magnetic fields near the laser threshold have a strong effect on the signal, they can be measured precisely at this point. Compared to fluorescent light, laser signals can be measured much more accurately and over a wider dynamic range.

In 2022, researchers at Fraunhofer IAF succeeded in demonstrating the world’s first magnetic field-dependent light amplification of NV centers. Due to the external laser source, however, the laser threshold of the NV centers could not yet be realized.

First demo of laser threshold

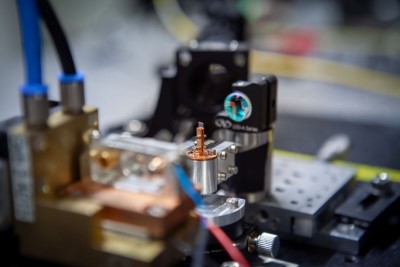

In the current results, the researchers combined the NV diamond with a second laser medium, a laser diode for additional light amplification, in an optical resonator. This enabled them to demonstrate the laser threshold for the first time; depending on how strongly the NV centers were pumped, the laser system switched on or off.

“The results are a breakthrough for the development of laser threshold magnetometry. On this basis, sensors with up to 100 percent contrast, strong light signals and a wide range of measurable magnetic field strengths can be realized in the future,” said Dr. Jan Jeske, researcher in the field of quantum sensor technology at Fraunhofer IAF.

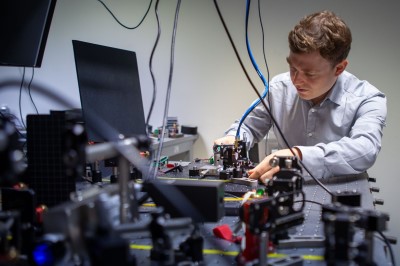

The work of first author Lukas Lindner shows an early stage of the lighthouse project “Laser threshold magnetometer for neuronal communication interfaces”, or NeuroQ for short, funded by the German Federal Ministry of Education and Research. The NeuroQ project team is working on further developing the innovative NV diamond laser system, which is currently in the patent application process, and increasing its sensitivity.

The NeuroQ consortium, comprising the IAF, Charité - Universitätsmedizin Berlin, University of Stuttgart and other industrial partners, is developing high-precision quantum sensors for medical applications. The quantum sensors will measure neuronal activity and transmit the signals to an exoskeleton via a brain-computer interface. This technology will enable paralyzed people to control an exoskeleton with their thoughts and thus regain some of their mobility.
