New Broadband Version of ERIS Analog Spatial Light Modulator

The NEW ERIS-NIR-153 version is optimized to cover a broad wavelength range from 420 nm up to 1100 nm. This offers highest flexibility of use across different projects and applications. The ERIS SLM plattform delivers extreme phase stability, low latency, and low crosstalk.

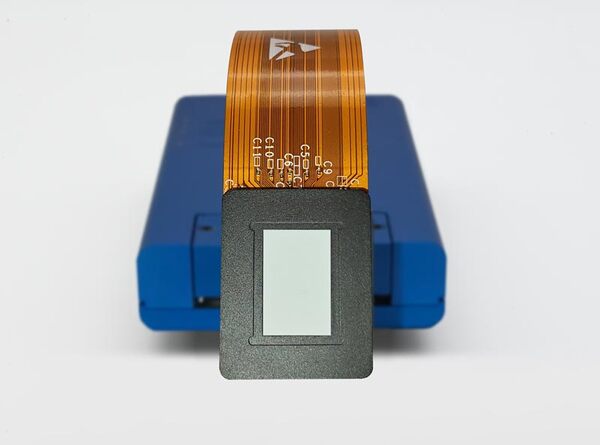

The SLM is based on an 0.717″ LCOS-microdisplay with a resolution of 1920×1200 pixels and 8µm pixel pitch.

ERIS-NIR-153:

• Wavelength Range: 420 - 1100 nm
• Drive Scheme: Analog
• Display Type: Reflective LCOS (Phase Only)
• Resolution: 1920 x 1200 Pixel
• Pixel Pitch: 8 µm
• Fill Factor: >92 %
• Active Area / Diagonal: 15.42 x 9.66 mm (0.717” Diagonal)
• Phase Levels: 256 (8-bit) or 1024 (10-bit)
• Input Frame Rate: 60 Hz

For more information visit the HOLOEYE website holoeye.com!
