HgCdTe LN2-cooled IR Detector - PC-LN2-16.6

VIGO Photonics would like to introduce our HgCdTe LN2-cooled IR Detector PC-LN2 with a spectral range over 18.0 µm and an active area of 1 mm × 1 mm.

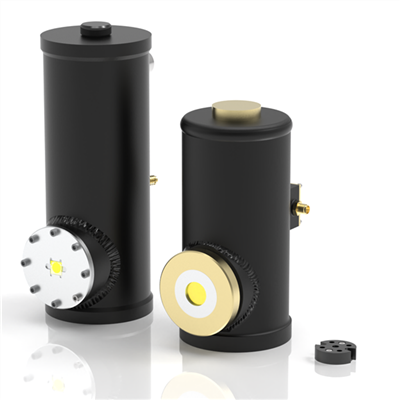

PC-LN2-16.6-1x1-VFP-KR163-wZnSeAR-50 is a photoconductive IR detector based on HgCdTe heterostructures for optimal performance and stability. This detector is optimized for operation at cryogenic temperatures, typically at 77 K (liquid nitrogen temperature). Its 10% cut-off wavelength (λcut-off) is 18.1 µm and its active area (A) is 1 mm × 1 mm. The detector should operate in optimum bias current (Ib) and voltage readout mode. Performance at low frequencies is reduced due to 1/f noise. The detector is mounted in a Kadel KR163-FSMA2 dewar with a 3 deg. wedged zinc-selenide anti-reflection-coated window. This detector is widely used in demanding applications requiring exceptional sensitivity and a wide spectral range.

More information: https://vigophotonics.com/product/hgcdte-photoconductive-ir-detector-pc-ln2-16-6-1x1-vfp-kr163-wznsear-50/
