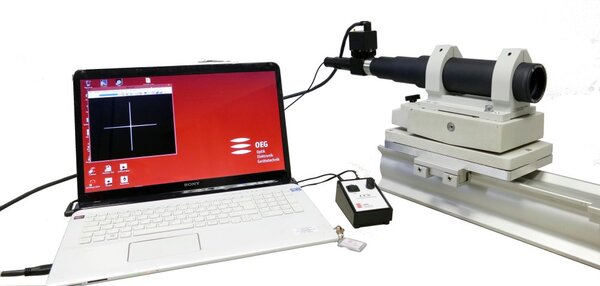

EAC 500/65 SWIR-Electronic Autocollimator for SWIR wavelength
13 September 2023
EAC 500/65 is an electronic autocollimator for SWIR wavelength.
Measuring functions
- Auto collimation 1D/2D
- Deflection/wedge angle in transmission (collimator telescope) 1D/2D
- Deflection/wedge angle with double pass (EAC and mirror)
- Wedge angle via double cross (evaluation of reflections from both surfaces of a glass wedge)
- Optional continuous or triggered display and logging of measured values
- Optional graphical or numerical display of the auto collimation/ deflection angle to support adjustment tasks
Resolution: 0,1 arcsec
Accuracy: <1 arcsec
For more information please go to: https://www.oeggmbh.com/?p=2&k=15&kj=&z=
