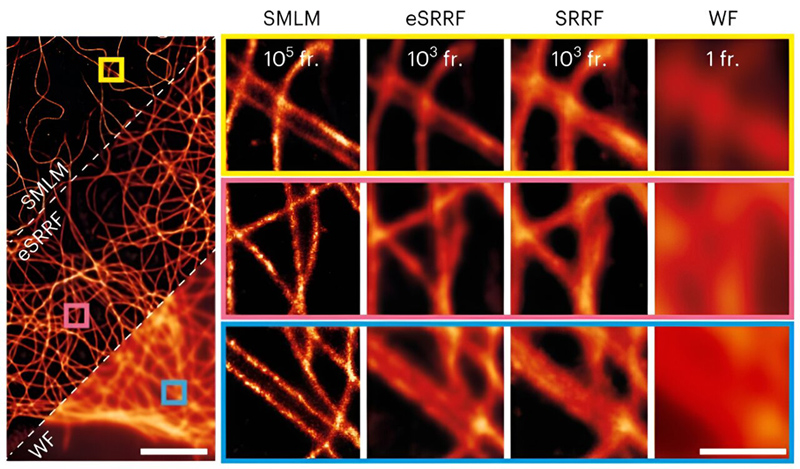

| Super-resolved reconstruction images from eSRRF and SRRF obtained from 1,000 frames of high-density fluctuation data (12.1 localizations per frame and µm2), created in silico from an experimental sparse-emitter dataset (DNA-PAINT microscopy of immunolabeled microtubules in fixed COS-7 cells, 0.121 localizations per frame and µm2).
The SMLM reconstruction obtained from the sparse data and the WF equivalent are shown for comparison. The number of frames used for reconstruction is indicated in each column (FRC resolution estimate, SMLM 71 ± 2 nm, eSRRF 84 ± 11 nm, SRRF 112 ± 40 nm, WF 215 ± 20 nm). Scale bars, 1 µm (a, and insets in c) and 5 µm (c, left). FRC is shown as mean ± s.d.
|
