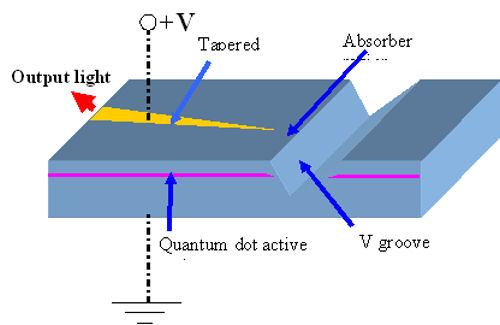

The schematic of the QD SLED shows that the device is electrically driven. The positive electrode is the upper tapered region, and the negative electrode is the back bottom side of the device. Output light is from the front facet of the tapered electrode.
