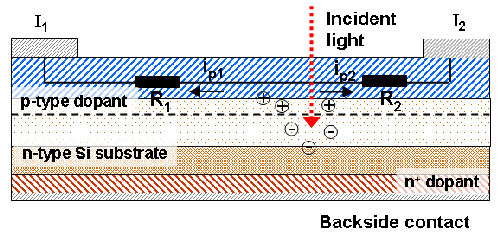

The MOS PSDs have two or four contacts corresponding to a one or two dimensional detector respectively. The current generated by the incident light is divided between the contacts in proportion to the resistance between the generation site and the contacts. The position of the light is determined by the ratio of these currents. By comparing the relative magnitude of the currents recorded from each contact, the position can be determined.

Image Credit: Henrik Andersson
