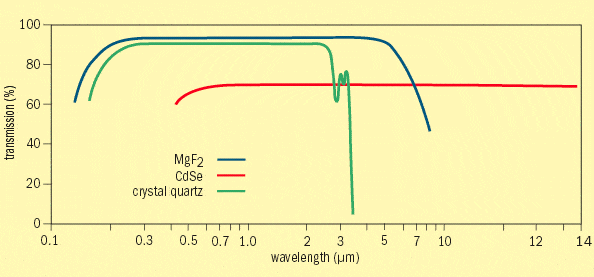

This plot of transmission versus wavelength of three commonly used birefringent materials can help the user select the appropriate material for the application. Sample thicknesses for MgF2, crystal quartz and CdSe are 5, 10 and 1.8 mm thick, respectively. CdSe data provided by Cleveland Crystals. Image: CVI Laser |
