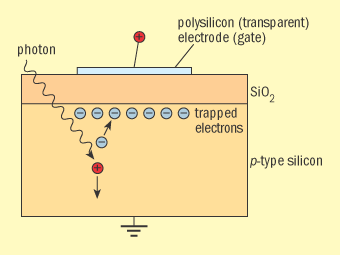

Fig. 1: each pixel in a CCD chip is a tiny capacitor that is formed by growing a layer of silicon dioxide on top of a silicon substrate. A metal electrode, known as the gate, is then evaporated on top of the structure.
