Swiss group finds that overlaying new color detectors boosts resolution and sensitivity to multiple wavelengths.Empa and ETH Zurich have developed such a sensor prototype that absorbs light almost optimally – and is also cheap to produce.
The human eye has three different types of sensory cells for the perception of color: cells that are respectively sensitive to red, green and blue alternate in the eye and combine their information to create an overall colored image. Image sensors, for example in mobile phone cameras, work in a similar way: blue, green and red sensors alternate in a mosaic-like pattern. Intelligent software algorithms calculate a high-resolution color image from the individual color pixels.
However, the principle also has some inherent limitations: as each individual pixel can only absorb a small part of the light spectrum that hits it, a large part of the light is lost. In addition, the sensors have basically reached the limits of miniaturization, and unwanted image disturbances can occur; these are known as color moiré effects and have to be laboriously removed from the finished image.

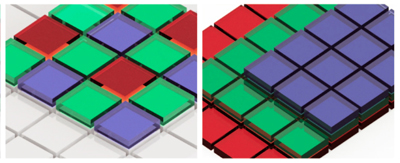

Researchers have, therefore, been working on the idea of stacking the three sensors instead of placing them next to each other. This approach requires that the sensors on top let through the light frequencies that they do not absorb to the sensors underneath.
At the end of the 1990s, this type of sensor was successfully produced for the first time. It consisted of three stacked silicon layers, each of which absorbed only one color. This design resulted in a commercially available image sensor. However, it was not successful on the market because the absorption spectra of the different layers were not distinct enough, so part of the green and red light was absorbed by the blue-sensitive layer.

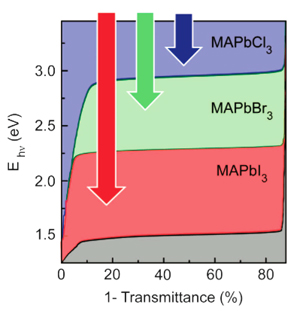

Empa researchers have now succeeded in developing a sensor prototype that circumvents these problems. It consists of three different types of perovskites. Depending on the composition of the perovskites, they can, for example, absorb part of the light spectrum, but remain transparent for the rest of the spectrum.
The researchers in Maksym Kovalenko's group at Empa and ETH Zurich used this principle to create a color sensor with a size of just one pixel. The researchers were able to reproduce both simple one-dimensional and more realistic two-dimensional images with an extremely high color fidelity.
The researchers say that the advantages of this new approach are clear: the absorption spectra are clearly differentiated and the color recognition is thus much more precise than with silicon. In addition, the absorption coefficients, especially for the light components with higher wavelengths (green and red), are considerably higher in the perovskites than in silicon.
As a result, the layers can be made significantly smaller, which in turn allows smaller pixel sizes. This is not crucial in the case of ordinary camera sensors; however, for other analysis technologies, such as spectroscopy, this could permit significantly higher spatial resolution.
The perovskites can also be produced using a comparatively cheap process. However, more work is still needed in order to further develop this prototype into a commercially viable image sensor. Key areas include the miniaturization of pixels and the development of methods for producing an entire matrix of such pixels in one step. According to Kovalenko, this should be possible with existing technologies.
