28 Jun 2016

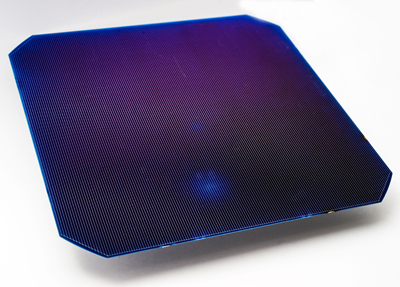

Achievement of "highly efficient bifacial n-PERT solar cell" shown at Intersolar Europe conference in Munich.Imec, the nano-electronics research center and partner in Energyville, presented at last week’s Intersolar Europe/EU PVSEC conference a highly efficient bifacial n-PERT (BiPERT) solar cell featuring a bifaciality value close to 100%. With a rear cell efficiency close to the efficiency measured from the front of the cell, imec’s new achievement underscores the ability to strongly enhance the energy yield of photovoltaic modules made with this type of cell.
Bifacial solar cells not only capture the light falling on the front side of the solar panel, but also the light that reaches the rear side of the panel, such as light that is reflected from the background, from clouds, diffuse light, and even direct light at sunrise or sunset. Bifacial modules can therefore generate more energy when compared with traditional monofacial modules.
Energyville is an association of the Flemish research institutes KU Leuven, VITO and imec in the field of sustainable energy and intelligent energy systems.
Field tests published by imec have indicated that, depending on albedo values and bifaciality, bifacial gains from 10–40 percent are achievable. Bifacial cells can also be integrated into traditional glass-back sheet modules. In this configuration, they benefit from the scattering of infrared light at the back sheet to compensate for the lack of a rear metal reflector and from light reflection in the gaps between the cells
Imec’s bifacial n-PERT cells feature very thin (< 5 μm) Ni/Ag plated contacts and no busbars on both sides of the cell, resulting in a symmetrical structure of high aesthetic value. The cells have the potential to deliver a very low cost-of-ownership, as they can profit from a bifacial gain, a low-cost metallization sequence, and the high efficiency potential of multi-wire interconnections that reduce optical shading and the required metal contact fraction
The first experimental batch of BiPERT cells (n-type Cz-Si, size: 239cm2) resulted in high bifaciality values. The current as measured from the rear (39.8 mA/cm2) was 97% of the one measured from the front (41.2 mA/cm2). Typical bifaciality values are around 80-90%, says imec. Moreover, imec’s BiPERT cells with a rear emitter configuration achieved "excellent efficiencies" up to 22.6% measured with a GridTOUCH system using only front side illumination and a non-reflective chuck.
Imec commented, "these efficiency measurements do not yet include the positive effect of the cells’ bifaciality on the effective energy yield of the cell. Moreover, optimizations to the cell process and introducing a front emitter configuration are expected to further increase the cell efficiency and the energy yield. With these efficiency and bifaciality values, an effective efficiency of about 26% may be expected with a limited bifacial gain of only 15%."
Imec presented this significant technical achievement in its conference presentation, “2CO 2.5 Bifacial n-PERT Cells (BiPERT) with Plated Contacts for Multi-Wire Interconnection”, last week, at the 32nd European Photovoltaic Solar Energy Conference and Exhibition, held in Munich, Germany.
