Hamamatsu develops first watt-level photonic crystal laser

30 Apr 2014

Partnership with Kyoto University demos continuous room temperature operation of laser, which delivers 1.5W.

Hamamatsu Photonics, in conjunction with Kyoto University’s Photonics and Electronics Science and Engineering Center and other partners, has developed what they are calling the world’s first watt-level photonics crystal laser; a next-generation semiconductor laser light source.

Some results of the group’s research have recently been published in Nature Photonics and further information will appear in the May 2014 issue of the publication.

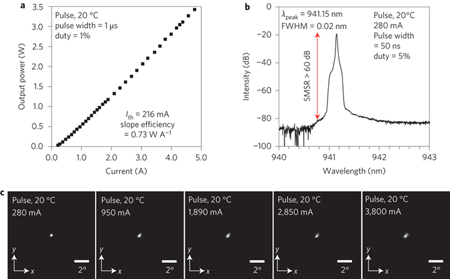

The group demonstrated continuous room temperature operation of the new laser, which generated output of 1.5W while maintaining a narrow beam spread of less than 3 degrees. In addition, the group demonstrated the utility of the laser’s high brightness and high output by showing how it can burn through a substance through direct, lens-less irradiation.

These results are a significant milestone for laser-based manufacturing (in Japan), as they lay the groundwork for the future adoption of this new type of laser for laser excitation, wavelength conversion, biotechnology, analytical chemistry, and other applications.

Some of the research was supported by grants from the Japan Science and Technology Agency’s ACCEL Program and from the Photon Frontier Program of Japan’s Ministry of Education, Culture, Sports, Science, and Technology.

Applications

The Nature Photonics article abstract states, “The applications of surface-emitting lasers, in particular VCSELs, extend to various low-power fields including communications and interconnections.

"However, the fundamental difficulties in increasing output power by more than several milliwatts while maintaining single-mode operation prevent application in higher power fields such as material processing, medicine and nonlinear optics, despite their advantageous properties of circular beams, absence of catastrophic optical damage, and suitability for 2-D integration.

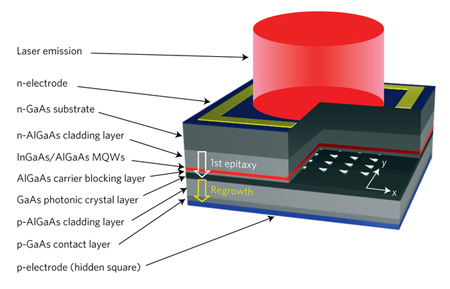

“The developers demonstrate watt-class high-power, single-mode operation by a two-dimensional photonic-crystal surface-emitting laser under room-temperature, continuous-wave conditions. The two-dimensional band-edge resonant effect of a photonic crystal formed by metal–organic chemical vapour deposition enables a 1,000 times broader coherent-oscillation area, which results in a high beam quality of M2 ≤ 1.1, narrowing the focus spot by two orders of magnitude compared to VCSELs. The demonstration promises to realize innovative high-power applications for surface-emitting lasers.”

About the Author

Matthew Peach is a contributing editor to optics.org.
