Warsaw-led group creates shaped perovskite crystals that act as waveguides

27 Aug 2024

Such photonics integrated circuits, which work at room temperature, “could revolutionize classical and quantum processing”.

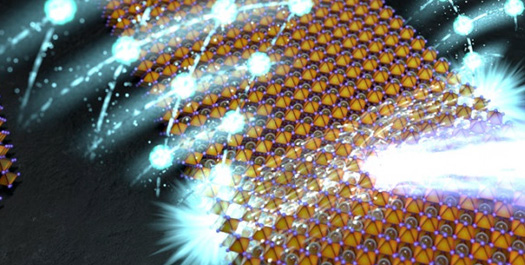

Scientists from the University of Warsaw’s Faculty of Physics along with other researchers from Poland, Italy, Iceland, and Australia, have demonstrated the creation of perovskite crystals with predefined shapes that can serve in nonlinear photonics as waveguides, couplers, splitters, and modulators.

The research results have been published in Nature Materials.

Integrated photonic circuits operating at room temperature combined with optical nonlinear effects could revolutionize both classical and quantum signal processing. According to the researchers, this effect is associated with the formation of the condensate of exciton-polaritons, which are quasiparticles that behave partly like light and partly like matter.

“Perovskites exhibit great versatility: from polycrystalline layers, nano- and micro-crystals to bulk crystals. They can be used in various applications, from solar cells to lasers. Some, such as the CsPbBr3 (cesium-lead-bromide) material we used, are also ideal semiconductors for optical applications due to their high exciton binding energy and oscillator strength.

These effects allow for enhanced light interactions, significantly lowering the energy required for nonlinear light amplification,” said Warsaw Prof. Barbara Piętka, one of the project’s initiators, who is responsible for the research process.

Forming ‘any shape’

The researchers applied repeatable and scalable synthesis methods to obtain perovskite crystals with precisely defined dimensions and shapes. They used a microfluidic approach, where crystals are grown from a solution in narrow polymer molds that can be imprinted with any shape from a template

A key element was controlling the solution concentration and growth temperatures while maintaining an atmosphere of saturated solvent vapors. This approach, combined with the use of nearly atomically smooth gallium arsenide templates made using electron-beam lithography and plasma etching at the Łukasiewicz Research Network – Institute of Microelectronics and Photonics under Anna Szerling’s leadership, produced high-quality single crystals

In this way, CsPbBr3 crystals can be formed into any shape with simple corners to smooth curves, which the Warsaw-led group says “is a true achievement in the world of crystalline materials”. They can be fabricated on any substrate, enhancing their compatibility with existing photonic devices

“These crystals, due to their high quality, form Fabry-Pérot type resonators on their walls, allowing strong nonlinear effects to be observed without the need for external Bragg mirrors,” said Matuesz Kędziora, a doctoral candidate at the Faculty of Physics and the first author of the paper in Nature Materials.

The researchers emphasise that perovskites could play a key role in the further development of optical technologies. The discoveries of physicists from UW could significantly increase the chances of using perovskite crystals in nonlinear photonics operating at room temperature. Moreover, the developed structures may be compatible with silicon technology, further enhancing their commercialization potential.
