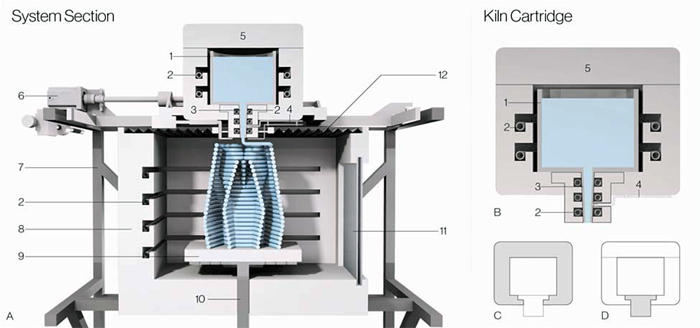

| Cross‐section of the system showing (A) the printer during fabrication, (B) the Kiln Cartridge (C) the Crucible Kiln and (D) the Nozzle Kiln. Detail elements are as follows: (1) the crucible, (2) heating elements, (3) the nozzle and (4) the thermocouple, (5) removable feed access lid (6) stepper motors (7) printer frame (8) Print Annealer (9) ceramic print plate (10) z‐drive train (11) ceramic viewing window (12) insulating skirt. |
